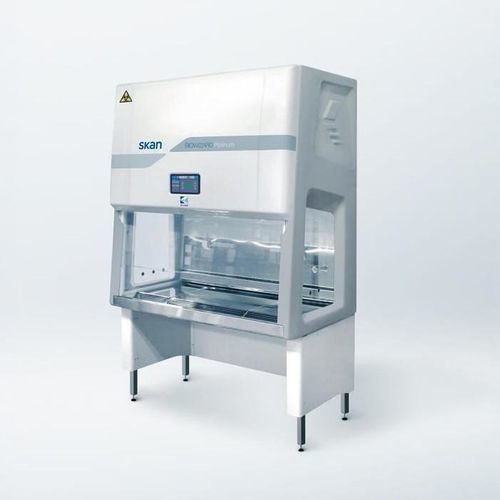

Class II microbiological safety cabinet Platinum

medicalfor the food industryfor life sciences applications

Overview
The Platinum microbiological safety cabinet with its modern design for safe and efficient working. Safety, ergonomics and innovation are paramount. The latest technologies, materials and innovations have been used to meet stringent GMP requirements.

Applications

• Biotech & Life Sciences
• Laboratory & Research
• Food Industry
• Hospital & Pharmacy

Protection category

• Personal protection
• Product protection
• Environmental protection

At a glance - Key characteristics

• Standard: DIN EN 12469, DIN EN 12980
• Filter type: HEPA 14
• ISO class: ISO 5
• Ergonomic and safe working environment: optimally designed work surface and controls for comfortable and safe operation
• High-resolution touch screen: intuitive control via the touch display for easy operation and quick adjustments
• Easy-to-clean materials: surfaces are simple to clean for hygienic working conditions
• Smooth, edge-free construction: prevents dirt accumulation and simplifies maintenance
• V-shaped work surface segments: optimized airflow within the workbench
• Motion sensors: detect movement and allow fan technology to intelligently adjust airflow

Requirements

• Optimal protection for personnel, products and cross-contamination: HEPA filtration and controlled airflow ensure maximum safety
• Safe handling of microbiological substances: targeted airflow management and a sealed work opening provide operator and sample protection
• Energy-saving and low-noise operation: intelligent controls and efficient components ensure economical operation

Functional principle
Class II safety cabinets with two HEPA filters: part of the filtered exhaust air is directed downward as a laminar "air stamp" for product protection while drawn-in room air creates an "air curtain" at the front panel that returns through the work surface slots to the air circulation system for operator protection. Particle-free exhaust air minimizes the risk of contaminating the laboratory environment.

Caractéristiques / spécifications techniques

• General specifications: Standard: DIN EN 12469, DIN EN 12980; Filter type: HEPA 14; ISO class: ISO 5; Power supply / consumption varies by model.
• Platinum 100: Outside dimensions (W x D x H) with base stand in mm: 1094 x 895 x 2195
  Inside dimensions, working space (W x D x H) in mm: 914 x 600 x 665
  Power consumption: from 93 W
• Platinum 130: Outside dimensions (W x D x H) with base stand in mm: 1339 x 895 x 2195
  Inside dimensions, working space (W x D x H) in mm: 1219 x 600 x 665
  Power consumption: from 104 W
• Platinum 170: Outside dimensions (W x D x H) with base stand in mm: 1744 x 895 x 2195
  Inside dimensions, working space (W x D x H) in mm: 1564 x 600 x 665
  Power consumption: from 165 W
