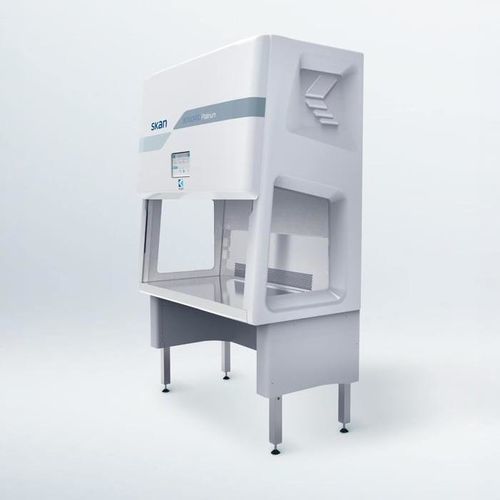

Healthcare facility clean bench Platinum Cleanwizard

for research laboratoriesfor the pharmaceutical industryfor clean rooms

Overview
Product protection cabinet with low-turbulence vertical unidirectional airflow. The Platinum Cleanwizard CW-V is designed for ergonomic, efficient handling and to protect sensitive products and components from airborne contamination during processing and assembly.

Applications

• Biotechnology & Life Sciences laboratories
• Quality control and research labs
• Food processing and packaging
• Medtech and micro-assembly (mechatronics)
• Hospitals, pharmacies and sterile preparation areas

Protection category
Product protection (ISO 5 clean zone)

Key characteristics

• HEPA H14 filtration as standard — removes particles to H14 efficiency
• Vertical low-turbulence airflow — uniform distribution across the working area
• Energy-efficient operation — power consumption ≤ 173 W depending on variant
• Smooth, easy-to-clean surfaces — reduces cleaning time and contamination risk
• 5-year warranty — designed for long operational reliability

Requirements

• Maintain product integrity — protects sensitive or sterile components during handling
• Controlled production environment — minimizes airborne particulates and supports regulatory compliance

Functional principle
Air is drawn through the HEPA H14 filter and flows vertically downward with minimal turbulence. Outward-directed air movement at the work opening prevents ingress of particles toward the protected product area.

Standards & Performance
Configured to create an ISO 5 clean zone in accordance with EN ISO 14644-1 when equipped with HEPA H14 filtration.

Technical specifications

• Standard: EN ISO 14644-1
• ISO class: ISO 5
• Filter type: HEPA H14 (standard)
• Protection category: Product protection
• Warranty: 5-year warranty
• Energy consumption: variants listed below (W)
• Variants (dimensions and power consumption):
  Variant 100 — Outer dimensions (W x D x H) w/o base frame in mm: 1094 x 895 x 2195; Inside dimensions (W x D x H) in mm: 914 x 600 x 665; Power consumption W: 93
  Variant 130 — Outer dimensions (W x D x H) w/o base frame in mm: 1339 x 895 x 2195; Inside dimensions (W x D x H) in mm: 1219 x 600 x 665; Power consumption W: 104
  Variant 170 — Outer dimensions (W x D x H) w/o base frame in mm: 1744 x 895 x 2195; Inside dimensions (W x D x H) in mm: 1564 x 600 x 665; Power consumption W: 165
  Variant 200 — Outer dimensions (W x D x H) w/o base frame in mm: 2049 x 895 x 2195; Inside dimensions (W x D x H) in mm: 1869 x 600 x 665; Power consumption W: 173
