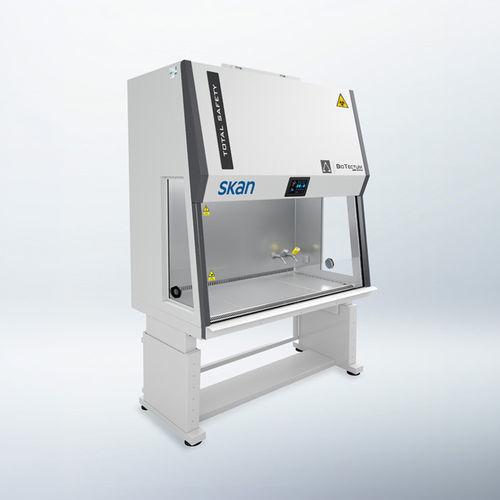

Class II microbiological safety cabinet Classic plus

for the food industryclinicalfor research

Overview The Classic Plus is a Class II biological safety cabinet designed for personnel, product and environmental protection in laboratory and clinical environments. Compared with the Classic model, Classic Plus adds customization options and a height-adjustable base frame as standard to improve ergonomic working conditions and process integration.

Applications

• Biotech & Life Sciences
• Laboratory & Research
• Food Industry
• Hospital & Pharmacy

Protection category

• Personal protection
• Product protection
• Environmental protection

Key characteristics

• Integrated UV unit — reduces contamination risk during inactive periods
• Electrically adjustable front panel — precise working-height adjustment for operator ergonomics
• Modbus RTU connection — facilitates integration into building and laboratory control systems
• Temperature sensor in the working area — continuous monitoring of the work environment
• Seal at the work opening — improves containment and laboratory safety
• Height-adjustable base frame — ergonomic feature supplied as standard

Requirements

• Effective protection of personnel, samples and the environment via HEPA filtration and controlled airflow
• Safe handling of microbiological substances through managed airflow and a sealed work opening
• Energy-efficient, low-noise operation with intelligent controls and high-efficiency components

Functional principle Class II cabinets use two HEPA filters. A portion of the filtered exhaust air is directed downward as a laminar air column to ensure product protection, while a front air curtain formed with room air and return slots in the work surface protects the operator. Particle-free exhaust air reduces contamination risk to the laboratory environment.

Technical specifications

• Standard: DIN EN 12469
• Filter type: HEPA 14
• ISO class: ISO 5
• Performance / dimensions (variants):
  Classic Plus 1.0 — Outer dimensions (W x D x H) in mm: 1036 x 790 x 2025 – 2225
  Inside dimensions, working space (W x D x H) in mm: 940 x 620 x 770
  Classic Plus 1.2 — Outer dimensions (W x D x H) in mm: 1286 x 790 x 2025 – 2225
  Inside dimensions, working space (W x D x H) in mm: 1200 x 620 x 710
  Classic Plus 1.5 — Outer dimensions (W x D x H) in mm: 1630 x 790 x 2025 – 2225
  Inside dimensions, working space (W x D x H) in mm: 1500 x 620 x 710
  Classic Plus 1.8 — Outer dimensions (W x D x H) in mm: 1930 x 790 x 2025 – 2225
  Inside dimensions, working space (W x D x H) in mm: 1800 x 620 x 710
