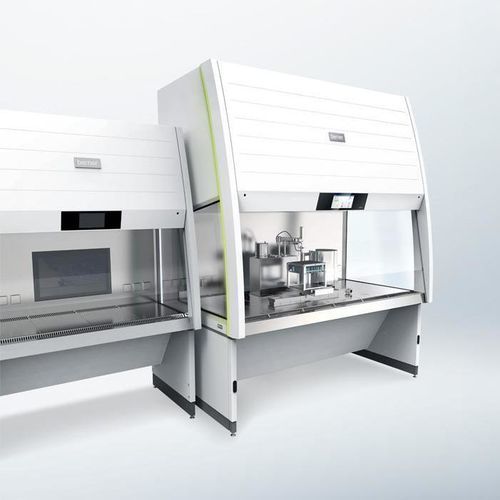

Class II microbiological safety cabinet claire® xl

for productionlaboratoryfor highly potent active pharmaceutical ingredients

Overview
The claire® xl is a Class II biological safety cabinet engineered to provide aseptic conditions for large laboratory and production equipment such as pharmaceutical filling and sealing systems, 3D printers for material production and laboratory automation modules. It delivers an expanded workspace and controlled airflow to protect personnel, product and environment.

Key characteristics

• Expanded workspace: accommodates large equipment and automation modules for efficient workflows.
• Ergonomic design: adjustable working height and easily accessible controls for operator comfort.
• GreenTec Energy Efficiency: optimized airflow and components to reduce energy consumption.
• HEPA cartridge filter: noise-optimized HEPA 14 filtration for clean and quiet operation.
• Motion detection system: automatic personnel recognition improves operational safety.
• Redundant filtration: three-stage HEPA arrangement enhances protection against contamination.
• Modular accessories: configurable options to match specific laboratory and production requirements.

Intended use

• Protection of personnel, product and environment through HEPA filtration and controlled airflow.
• Designed for filling/sealing systems, pipetting robots and liquid-handling systems in laboratory automation.
• Suitable for work with microbiological agents up to containment levels S1–S4 when configured accordingly.

Functional principle
Class II workbenches equipped with two or three HEPA filters. The third filtration stage complements the proven two-filter design and increases safety by capturing particles close to the work surface and keeping air-handling components particle-free. Targeted airflow and redundant HEPA filtration ensure high filtration efficiency and minimal contamination risk.

Standards & Performance

• Standards: DIN EN 12469, DIN EN 12980.
• Filter type: HEPA 14.
• Cleanroom class: ISO 5.

Technical specifications

• Designation: claire® xl series.
• Standards: DIN EN 12469, DIN EN 12980.
• Filter type: HEPA 14.
• ISO class: ISO 5.
• claire® xl 160 — Outer dimensions (W x D x H) in mm: 1654 x 1185 x 2340–2580.
• claire® xl 160 — Internal dimensions (W x D x H) in mm: 1559 x 927 x 695–824.
• claire® xl 160 — Maximum load capacity per tabletop segment: 30 kg.
• claire® xl 190 — Outer dimensions (W x D x H) in mm: 1957 x 1185 x 2340–2580.
• claire® xl 190 — Internal dimensions (W x D x H) in mm: 1862 x 927 x 695–824.
• claire® xl 190 — Power consumption (GMP/ECO): 375 W.
• Maximum load capacity per tabletop segment (both models where specified): 30 kg.
