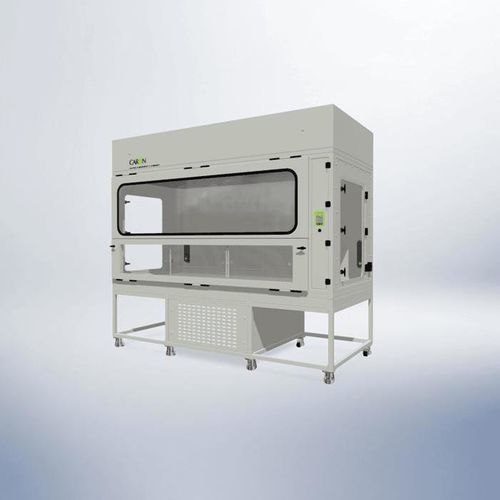

Exhaust enclosure Safety Enclosures

containmentfor research laboratoriesfor hospitals

Overview
These enclosures are designed for large and complex liquid handling and automation systems. The right containment for automation, robotics and liquid handling. Targeted airflow and filtration technology ensure a safe working environment and reliable product protection. Each enclosure is individually tailored to robotics and automation systems. The modular design provides high flexibility, fast implementation, excellent visibility, optimal accessibility, and straightforward installation by trained Swiss specialists.

Key features

• Tailored equipment: Custom dimensions and functions adapt the system precisely to laboratory requirements.
• Modular design: Flexible modules allow for easy adjustments, expansions, and integration of new workflows.
• Bright working area: Well-lit and easily accessible workspace improves visibility, precision, and safety.
• Integrated alarms: Acoustic and visual signals reliably alert users to deviations or malfunctions.
• Intuitive control: Display panel enables straightforward operation and monitoring of all key parameters.
• Flexible access: Folding and sliding windows provide convenient access, minimize contamination risks, and increase comfort.

Applications
Biotech & Life Sciences; Laboratory & Research; Mechatronics & Medtech; Hospital & Pharmacy.

Standards & performance
Standard: DIN EN 12469. Filter type: HEPA 14. ISO class: ISO 5.

Requirements

• Comprehensive protection: Depending on requirements, the enclosures provide protection for operators, products, and the environment.
• Individual adaption: Maximum flexibility in design and dimensions allows precise integration into existing laboratories or production areas.
• Modular implementation: Supports fast and straightforward installation; expansions or modifications can be carried out easily.

Functional principle
RO = Environmental and Operator Protection
The inward-directed, low-turbulence airflow prevents particles and aerosols within the work zone from escaping to the outside.
RP = Product Protection
Air flows smoothly through the HEPA filter from top to bottom. The outward-directed airflow ensures that the product remains free from contamination.
RC = Environmental, Operator and Product Protection
Laminar airflow through the work area ensures reliable product protection. A “protective air curtain” along the front sash provides additional operator protection. Exhaust air passes through the exhaust filter and is returned to the laboratory environment free from particles and microorganisms.

Enclosures at a glance — Characteristics

• Custom dimensions and functions for precise adaptation to laboratory requirements.
• Modular design for easy adjustments, expansions and integration of workflows.
• Well-lit and easily accessible working area for improved visibility and precision.
• Acoustic and visual alarms to alert users to deviations or malfunctions.
• Intuitive display panel for operation and monitoring of key parameters.
• Folding and sliding windows to minimize contamination risks and increase comfort.

Technical specification — model dimensions
RO1808: Outer dimensions (W x D x H) in mm: 1800 x 1280 x 2463
RO1808: Inside dimensions, working space (W x D x H) in mm: 1720 x 1200 x 1184

RO220L: Outer dimensions (W x D x H) in mm: 2200 x 1280 x 2463
RO220L: Inside dimensions, working space (W x D x H) in mm: 2120 x 1200 x 1184

RO260M: Outer dimensions (W x D x H) in mm: 2600 x 1280 x 2463
RO260M: Inside dimensions, working space (W x D x H) in mm: 2520 x 1200 x 1184

RP1808: Outer dimensions (W x D x H) in mm: 1800 x 1280 x 2463
RP1808: Inside dimensions, working space (W x D x H) in mm: 1720 x 1200 x 1184

RP220L: Outer dimensions (W x D x H) in mm: 2200 x 1280 x 2463
RP220L: Inside dimensions, working space (W x D x H) in mm: 2120 x 1200 x 1184

RP260M: Outer dimensions (W x D x H) in mm: 2600 x 1280 x 2463
RP260M: Inside dimensions, working space (W x D x H) in mm: 2520 x 1200 x 1184

RC180P: Outer dimensions (W x D x H) in mm: 1800 x 1400 x 2570
RC180P: Inside dimensions, working space (W x D x H) in mm: 1720 x 1200 x 1063

RC220Q: Outer dimensions (W x D x H) in mm: 2200 x 1400 x 2570
RC220Q: Inside dimensions, working space (W x D x H) in mm: 2120 x 1200 x 1063

RC260R: Outer dimensions (W x D x H) in mm: 2600 x 1400 x 2570
RC260R: Inside dimensions, working space (W x D x H) in mm: 2520 x 1200 x 1063

RC300S: Outer dimensions (W x D x H) in mm: 3200 x 1400 x 2570
RC300S: Inside dimensions, working space (W x D x H) in mm: 2920 x 1200 x 1063
