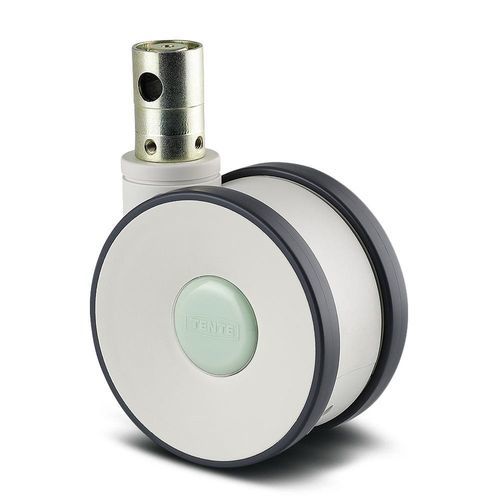

Medical trolley wheel Linea clinic

for hospital bedfor stretcherwith brake

Product description
The LINEA clinic is a twin-wheel swivel castor with central, total or directional lock designed for medical equipment. It features a short stem with cam hole for profile bars for secure attachment. The housing and wheel body are polyamide; the wheel tread is injected polyurethane. Precision ball bearings are used in both wheel and swivel for smooth rolling and long service life. Wheel diameter: 5.91 in; overall height: 6.1 in. Load capacity: dynamic 330.69 lb, static 661.39 lb. Engineered for use on anesthesia carts, C-arms, CT/MRI/X-ray systems, computers on wheels, dialysis and medication carts, hospital beds, stretchers, ultrasound systems and ventilators.

Product advantages

• Non-hazardous materials suitable for medical environments
• Tested quality with monitored performance
• Colour matching to integrate with equipment design

Special features

• Manual wheel lock to prevent unintended movement
• Total lock secures both wheel and swivel housing
• Central lock enables simultaneous locking of multiple castors via a single lever
• Colour matching adaptable to product design
• Award-winning industrial design
• Extremely low overall height to reduce entrapment risk under beds
• Low-maintenance wheels with threadguards for unobstructed operation
• Non-marking tread for reduced abrasion and cleaning effort
• Optimised rolling resistance to reduce user effort
• TÜV Süd certified performance standard
• Twin-wheel design for improved manoeuvrability via differential effect

Applications

• Anesthesia carts
• C-arms
• CT scanners
• MRI
• X-ray equipment
• Computers on wheels
• Dialysis carts
• Hospital beds
• Medication carts
• Nursing carts
• Stretchers
• Ultrasound equipment
• Ventilators

Technical specifications

• Article Number: 5944UAP150R36-32S27 safety OH155
• EAN: 4031582412765
• Series / Product name: Linea clinic
• Type: Swivel castor with central, total or directional lock
• Certification: Tested and monitored by TÜV Süd
• Overall width: 2.8 in
• Overall height: 6.1 in
• Wheel diameter: 5.91 in
• Tread width: 0.59 in
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected
• Bearing (wheel & swivel): Precision ball bearing
• Swivel bearing: Precision ball bearing
• Swivel interference: 10 in
• Offset: 1.87 in
• Swivel radius: 4.82 in
• Fork shape / Housing: Twin wheel housing
• Housing material: Polyamide
• Threadguards: With threadguard
• Fitting type: Stem with cam hole for profile bars, short version
• Bolt diameter: 1.26 in
• Bolt length: 1.97 in
• Load capacity (dynamic) at 3 km/h: 330.69 lb
• Load capacity (dynamic) at 4 km/h: 330.69 lb
• Load capacity (static): 661.39 lb
• Overall weight: 2.46 lb
• Temperature range (Minimum): 14 °F
• Temperature range (Maximum): 104 °F
• Standard: similar EN12531 - Hospital Bed Castors
• Electric conductive: No
• Stainless: No
