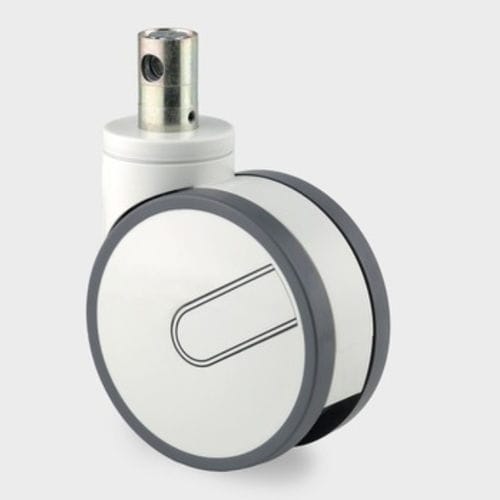

Medical trolley wheel Integral twin

for hospital bedfor operating tablewith brake

Short description
The Integral twin is a swivel castor with central, total or directional lock designed for precision mobility in medical equipment. It features a short-version 32 mm stem with cam hole for profile bars, pressed-steel housing, precision ball-bearing swivel and wheel bearings, and a polyamide wheel with injected polyurethane tread, diameter 5.91 in (150 mm). Overall height (complete assembly): 6.89 in (175 mm). Dynamic load capacity: 330.69 lb (≈150 kg) at referenced speeds; static load capacity: 992.08 lb (≈450 kg). Temperature range: -13 °F to 176 °F (-25 °C to 80 °C). Certified and tested for hospital applications (EN12531, TÜV Süd).

Advantages

• Non-hazardous materials
• Tested quality and monitored certification (TÜV Süd)
• Award-winning proven design
• Pressed-steel housing, zinc plated
• Wheel lock for manual prevention of unintended movement
• Total lock: simultaneous locking of wheel and swivel housing
• Central lock: simultaneous locking of multiple castors via central actuation lever
• Low-maintenance wheels with thread guards to prevent fouling and simplify cleaning
• Non-marking movement with reduced abrasion
• Chemical-resistant components tolerant to many cleaning agents
• Integrated cable protection to safeguard cables on the floor

Applications

• Anesthesia carts
• C-arms
• CT scanners
• MRI equipment
• X-ray equipment
• Care beds and hospital beds
• Surgery robots and operating tables
• Ultrasound devices
• General use in hospitals and nursing facilities requiring precise, safe mobility

Caractéristiques / spécifications techniques

• Article Number: 2944UAP150R36-32S30 D 9002 4xM6
• EAN: 4031582302578
• S4 Material Number: 990032831
• Product name / Series: Integral twin
• Type: Swivel castor with central, total or directional lock
• Diameter (wheel): 5.91 in (150 mm)
• Overall height (complete assembly): 6.89 in (175 mm)
• Overall width: 2.95 in (75 mm)
• Tread width / Body width: 0.59 in (15 mm)
• Tread material: Polyurethane, injected
• Body material (wheel): Polyamide
• Housing material: Steel sheet, medium
• Housing color / Wheel color: Gray white (RAL9002)
• Fork shape: Twin wheel housing
• Swivel bearing: Precision ball bearing
• Wheel bearing: Precision ball bearing
• Hardness of tread: 92 Shore A (approx. 42 Shore D)
• Threadguards: With threadguard
• Load capacity dynamic (at referenced speeds): 330.69 lb (≈150 kg)
• Load capacity static: 992.08 lb (≈450 kg)
• Overall weight: 3.13 lb (≈1.42 kg)
• Temperature range: Minimum -13 °F (-25 °C); Maximum 176 °F (80 °C)
• Certification / Standard: Tested and monitored by TÜV Süd; EN12531 - Hospital Bed Castors
• Bolt mounting holes quantity: 4
• Fitting type: Stem with cam hole for profile bars, short version (32 mm)
• Bolt diameter: 1.26 in (32 mm)
• Bolt length: 2.01 in (51 mm)
• Bolt thread position: 0.28 in (7 mm)
• Dome diameter: 2.76 in (70 mm)
• Offset: 1.77 in (45 mm)
• Swivel radius: 4.88 in (124 mm)
• Swivel interference: 9.76 in (248 mm)
