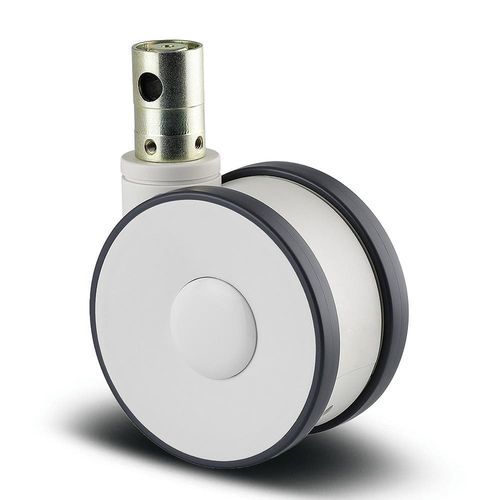

Medical trolley wheel Linea clinic

for hospital bedfor stretcherwith brake

Overview
The Linea clinic swivel castor with central total lock is engineered for medical environments including hospital beds, anesthesia and medication carts, stretchers and other clinical equipment. It features a stem with cam hole for profile bars (short version). For washable-bed variants, sealing at the fitting area must be carried out by the bed manufacturer. Housing material: polyamide. Swivel bearing: precision ball bearings. Wheel: polyamide body with injected polyurethane tread and stainless precision bearings. Wheel diameter: 4.92 in. Overall height: 5.12 in. Dynamic load capacity: 330.69 lb (at 1.86 mph and 2.49 mph). Static load capacity: 661.39 lb.

Advantages

• Non-hazardous materials: compliant with RoHS and REACH; free of PAHs and chromium VI
• Tested quality: in-house laboratory testing for compliance with applicable European standards
• Colour matching: wheel and housing colours can be adapted to product design

Special features / Benefits

• User-friendly central lock: simultaneous locking of multiple castors via a central actuation lever
• Prevents unintended movement: wheel lock for manual operation
• Low-maintenance wheels: threadguard design minimises cleaning effort and prevents debris ingress
• Non-marking movement: low-abrasion tread reduces floor marking and cleaning needs
• Optimised manoeuvrability: twin wheel design provides high manoeuvrability through differential effect
• Certified safety: performance tested and monitored by TÜV Süd
• Award-winning design

Applications

• Anesthesia carts
• Hospital beds
• Medication carts
• Stretchers
• Various medical equipment

Technical specifications

• Article Number: 5946UAC125R36-32S27 safety OH130
• EAN: 4031582412635
• Product series / name: Linea clinic
• Type: Swivel castor with central, total lock
• Certification: Tested and monitored by TÜV Süd
• Standard: similar EN12531 - Hospital Bed Castors
• Overall width: 2.8 in
• Overall height: 5.12 in
• Overall weight: 1.97 lb
• Load capacity at 3 km/h (≈1.86 mph): 330.69 lb
• Load capacity at 4 km/h (≈2.49 mph): 330.69 lb
• Load capacity Static: 661.39 lb
• Temperature range (Minimum): -4 °F
• Temperature range (Maximum): 176 °F
• Electric conductive: no
• Stainless: yes (stainless components present)
• Fitting type: Stem with cam hole for profile bars, short version
• Bolt diameter: 1.26 in
• Bolt length: 1.97 in
• Fork shape: Twin wheel housing
• Housing material: Polyamide
• Swivel bearing: Precision ball bearing
• Swivel interference: 8.07 in
• Offset: 1.57 in
• Swivel radius: 4.04 in
• Wheel hardness (A): 92 Shore A
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected
• Tread width: 0.59 in
• Wheel diameter: 4.92 in
• Threadguards: With threadguard
• Bearing: Precision ball bearing, stainless
