Hospital bed wheel Linea clinic

with brakepolyamidepolyurethane

Product overview

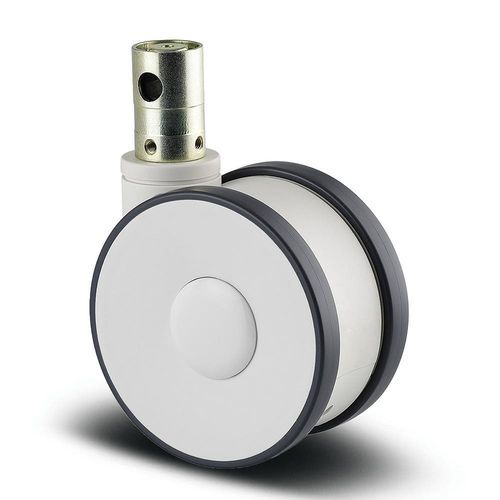

The Linea Clinic swivel castor with central total lock is designed for hospital bed and clinical applications. It features a short-version stem with cam hole for profile bars; for washable bed variants, the hospital bed manufacturer must seal the fitting area to preserve hygiene standards. The housing and wheel body are made of polyamide, with an injected polyurethane tread. The swivel uses precision ball bearings; wheel bearings are stainless steel precision ball bearings for corrosion resistance and longevity. Wheel diameter: 5.91 in; overall caster height: 6.1 in.

Key advantages

• Non-hazardous materials
• Tested and monitored by certification body (TÜV Süd)
• Colour matching available

Performance summary
The castor delivers smooth rolling, low movement noise, good wear resistance and high corrosion resistance suitable for clinical environments. Dynamic load capacity: 330.69 lb at operational speeds noted; static load capacity: 661.39 lb. Designed and tested to standards relevant for hospital bed castors and monitored by TÜV Süd.

Technical characteristics / specifications

• Series / Product name: Linea Clinic
• Article Number / Product number: 5946UAC150R36-32S30OH155 4xM6
• EAN / GTIN-13: 4031582359930
• Type: Swivel castor with central, total lock
• Certification: Tested and monitored by TÜV Süd
• Standard: similar EN12531 - Hospital Bed Castors
• Overall width: 2.8 in
• Overall height: 6.1 in
• Wheel diameter: 5.91 in
• Tread width: 0.59 in
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected
• Hardness of tread: 92 Shore A
• Bearing (wheel): Precision ball bearing, stainless
• Swivel bearing: Precision ball bearing
• Swivel interference: 10 in
• Offset: 1.87 in
• Swivel radius: 4.82 in
• Fork shape: Twin wheel housing
• Housing material: Polyamide
• Threadguards: With threadguard
• Load capacity (dynamic) at 3 km/h: 330.69 lb
• Load capacity (dynamic) at 4 km/h: 330.69 lb
• Load capacity (static): 661.39 lb
• Temperature range (minimum): 14 °F
• Temperature range (maximum): 104 °F
• Overall weight: 2.41 lb
• Fitting type: Stem with cam hole for profile bars, short version
• Bolt diameter: 1.26 in
• Bolt length: 1.97 in
• Hint (fitting / handle set): Washable beds must be sealed in the fitting area by the hospital bed manufacturer
• Electric conductive: No
• Stainless: Yes
