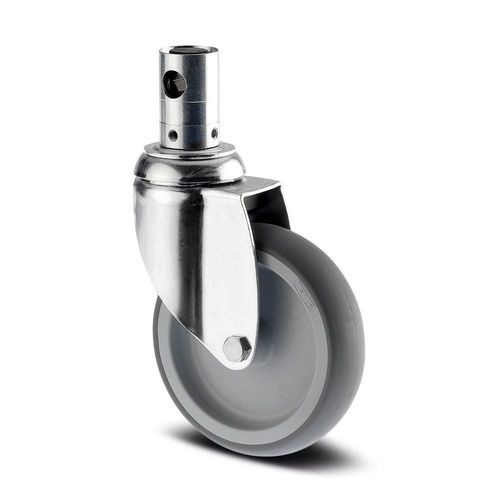

Hospital bed wheel Agila care

with brakerubberhigh-temperature

Short description
The Agila care is a swivel castor with central total lock designed for demanding healthcare environments. It features a short stem with cam hole for profile bars, a pressed steel housing with blue passivated finish and a polypropylene wheel with a thermoplastic rubber non-marking tread. Wheel bearing: plain bearing. Overall height: 5.43 in; wheel diameter: 3.94 in. Dynamic load capacity (at 3 km/h): 176.37 lb; static capacity: 352.74 lb. Typical applications include care beds, hospitals and nursing or retirement homes.

Product advantages

• Non-hazardous materials
• Tested quality
• Sterile cleaning capability

Special features

• Non-hazardous materials: compliant with RoHS and REACH; free of polycyclic aromatic hydrocarbons and chromium (VI)
• Tested quality: tested in TENTE laboratory for compliance with European standards
• Solid housing: pressed steel, zinc plated (blue passivated)
• Prevents unintended movement: wheel lock for manual operation (total lock)
• Sterile cleaning: wheels suitable for steam sterilisation in autoclaves
• User-friendly central lock: simultaneous locking of multiple castors via a central actuation lever
• Non-marking movement: reduced abrasion and minimal cleaning requirements
• Easy steering: swivel head with double ball races

Applications

• Care beds
• Hospitals
• Nursing and retirement homes

Technical specifications

• Article Number: 2476PJO100R36-32S30 D 4xM6
• EAN: 4031582301748
• S4 Material Number: 990036251
• Product name: Agila care
• Type: Swivel castor with central, total lock
• Overall width: 2.36 in
• Overall height: 5.43 in
• Wheel diameter: 3.94 in
• Diameter options: 3.94 in (selected), 4.92 in, 5.91 in
• Tread material: Thermoplastic rubber
• Body material (wheel): Polypropylene
• Tread width / Body width: 1.26 in
• Hardness of tread: 87 Shore A
• Bearing (wheel): Plain bearing
• Swivel bearing: Two ball races
• Dome diameter: 2.36 in
• Swivel interference: 6.93 in
• Offset: 1.5 in
• Swivel radius: 3.46 in
• Overall weight: 1.75 lb
• Load capacity at 3 km/h (dynamic): 176.37 lb
• Load capacity static: 352.74 lb
• Load capacity (alternative unit shown on site): 176 lb (rounded)
• Temperature range (Minimum): -4 °F
• Temperature range (Maximum): 140 °F
• Housing color: Blue passivated
• Housing material: Steel sheet, medium
• Fork shape: Broad
• Bolt mounting holes quantity: 4
• Bolt diameter: 1.26 in
• Bolt length: 2.01 in
• Bolt thread position: 0.28 in
• Fitting type: Stem with cam hole for profile bars, short version (32 mm)
• Treadguards: Without treadguard
• Wheel color: Silver gray (RAL7001)
• Standard: EN12530 - Devices Castors
• Electric conductive: No
• Stainless: No
