Medical trolley wheel Supratech

polyamiderubberpolypropylene

Short description

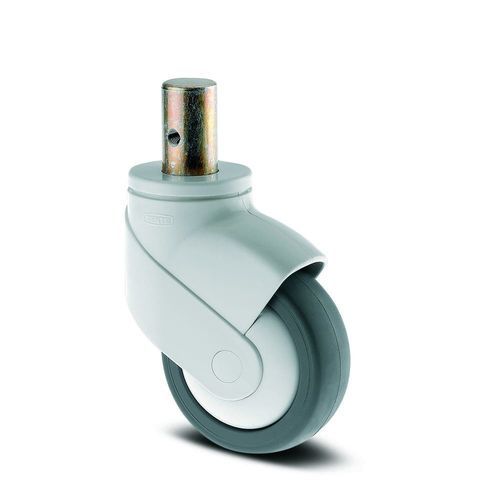

The Supratech swivel castor with solid round stem is designed for medium‑duty industrial and commercial mobility applications. The polyamide housing incorporates a precision ball bearing swivel system for smooth directional changes. The 3.94 in wheel has a polypropylene body and a thermoplastic rubber tread (87 Shore A) delivering floor protection and low noise; precision ball bearings on the wheel ensure reliable rolling performance.

Features

• Non‑marking movement
• Low‑maintenance design with threadguard
• Colour matching available
• Tested quality
• Non‑hazardous materials

Construction and materials

• Housing material: Polyamide
• Fork shape: Broad
• Wheel body material: Polypropylene
• Tread material: Thermoplastic rubber (87 Shore A)
• Tread width: 1.26 in (32 mm)
• Wheel diameter: 3.94 in (100 mm)
• Bearing type (wheel): Precision ball bearing
• Swivel bearing: Precision ball bearing
• Threadguards: With threadguard
• Fitting: Solid stem, round, 32 mm

Performance

• Dynamic load capacity (at 3 km/h / approx. 1.86 mph): 220.46 lb (100 kg)
• Static load capacity: 440.92 lb (200 kg)
• Overall height: 5.47 in (139 mm)
• Overall weight: 1.76 lb (0.8 kg)
• Temperature range: -10 °C to 40 °C (14 °F to 104 °F)
• Roll performance / Movement noise / Attrition / Corrosion resistance: performance indicators shown on product page

Mounting / Fitting

• Fitting type: Solid stem, round
• Bolt diameter: 1.26 in (32 mm)
• Bolt length: 1.77 in (45 mm)

Geometry / Dimensions

• Wheel diameter: 3.94 in (100 mm)
• Overall height: 5.47 in (139 mm)
• Offset: 1.5 in (38 mm)
• Swivel radius: 3.46 in (88 mm)
• Swivel interference: 6.93 in (176 mm)

Applications
Suitable for medium‑duty industrial and commercial applications requiring reliable mobility, floor protection and quiet operation, such as trolleys, equipment stands and assembly lines.

Technical specifications

• Article Number: 5440PJP100R05-32
• EAN: 4031582336757
• Product name / Denomination: Supratech
• Type: Swivel castor
• Diameter: 3.94 in (100 mm)
• Overall height: 5.47 in (139 mm)
• Tread width: 1.26 in (32 mm)
• Tread hardness: 87 Shore A
• Body material: Polypropylene
• Housing material: Polyamide
• Bearing: Precision ball bearing (wheel and swivel)
• Load capacity (at 3 km/h): 220.46 lb (100 kg)
• Load capacity (static): 440.92 lb (200 kg)
• Temperature range: 14 °F to 104 °F (-10 °C to 40 °C)
• Fitting: Solid stem, round, 32 mm (bolt diameter 1.26 in, bolt length 1.77 in)
• Standards: EN12530 - Devices Castors
• Features: With threadguard, non‑marking movement, low‑maintenance
• Overall weight: 1.76 lb (0.8 kg)
