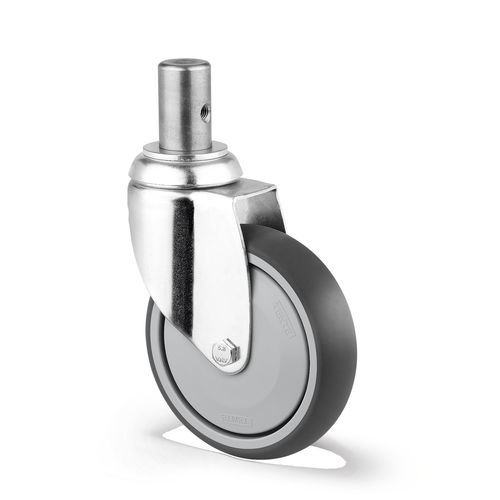

Hospital bed wheel Agila

rubberpolypropyleneswiveling

Overview The Agila swivel castor is supplied with a solid round stem and a pressed steel housing designed for secure mounting. It features a two ball-race swivel bearing for smooth direction changes and a polypropylene wheel with a thermoplastic rubber (TPR) tread mounted on a precision ball bearing. A threadguard protects the axle and reduces maintenance.

Advantages

• Non-hazardous materials compliant with RoHS and REACH
• Tested to applicable European standards
• Multiple fitting options for varied applications

Key features

• Wheel diameter: 4.92 in
• Overall height: 6.42 in
• Dynamic load capacity (at 3 km/h): 220.46 lb
• Static load capacity: 440.92 lb
• Wheel body: Polypropylene
• Tread: Thermoplastic rubber (TPR), 87 Shore A
• Tread width: 1.26 in
• Wheel bearing: Precision ball bearing
• Swivel bearing: Two ball races
• Fitting: Solid stem, round, 32 mm (bolt Ø 1.26 in, bolt length 1.77 in)
• Housing: Medium steel sheet, blue passivated
• Threadguard: Yes
• Weight: 2.27 lb

Applications

• Care beds and medical furniture
• Catering carts and meal delivery systems
• Hospitals and clinics
• Nursing and retirement homes
• Professional cleaning trolleys
• Store fixtures and display equipment

Special features

• RoHS/REACH compliant materials; free from PAHs and chromium (VI)
• In-house testing for conformity with EN12530
• Pressed steel housing with zinc passivation
• Threaded axle for easy wheel replacement
• Threadguard reduces cleaning and maintenance effort
• Non-marking tread for reduced floor abrasion
• Easy steering via double ball-race swivel head

Technical data Article Number: 2470PJP125R05-32
EAN: 4031582301007
Product name: Agila
Type: Swivel castor
Diameter: 4.92 in
Overall height: 6.42 in
Tread width: 1.26 in
Body material: Polypropylene
Tread material: Thermoplastic rubber (87 Shore A)
Wheel bearing: Precision ball bearing
Swivel bearing: Two ball races
Load capacity (dynamic @ 3 km/h): 220.46 lb
Load capacity (static): 440.92 lb
Overall weight: 2.27 lb
Temperature range: -4 °F to 140 °F
Housing material: Steel sheet, medium (blue passivated)
Fork shape: Broad
Swivel interference: 8.15 in
Offset: 1.61 in
Swivel radius: 4.07 in
Standard: EN12530 - Devices Castors
Threadguards: With threadguard

Characteristics / specifications

• Model series: Agila
• Wheel diameter: 4.92 in
• Overall height: 6.42 in
• Dynamic load capacity (at 3 km/h): 220.46 lb
• Static load capacity: 440.92 lb
• Body material: Polypropylene
• Tread material: Thermoplastic rubber, 87 Shore A
• Tread width: 1.26 in
• Bearing: Precision ball bearing (wheel), two ball races (swivel)
• Fitting: Solid stem, round, 32 mm (bolt Ø 1.26 in, bolt length 1.77 in)
• Housing: Steel sheet, medium, blue passivated
• Threadguards: Yes
• Operating temperature: -4 °F to 140 °F
• Weight: 2.27 lb
• Standard: EN12530
