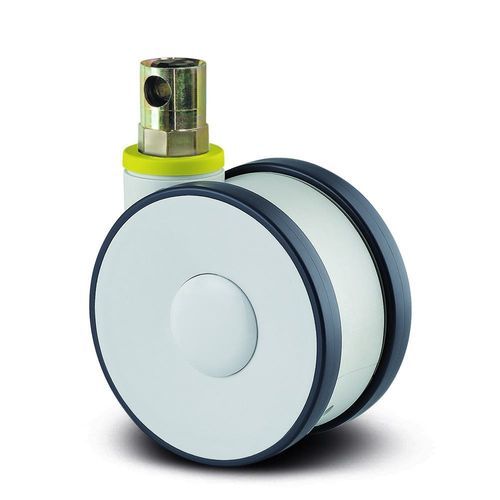

Hospital bed wheel Linea clinic

anti-staticwith brakepolyamide

Overview
The Linea clinic is a swivel castor with central, total or directional lock designed for demanding medical applications. It features a stem with cam hole for profile bars (short version fitting) and a polyamide housing with a precision ball bearing swivel system. The wheel has a polyamide body with injected, electric-conductive polyurethane tread and a stainless precision ball bearing. Wheel diameter: 5.91 in. Overall height: 6.1 in. Dynamic load capacities: 330.69 lb at 1.86 mph and 330.69 lb at 2.49 mph. Static load capacity: 661.39 lb. Washable variants must be sealed in the fitting area by the bed or equipment manufacturer.

Product advantages

• Non-hazardous materials
• Tested quality
• Colour matching

Special features

• Non-hazardous materials: Complies with RoHS and REACH; does not contain polycyclic aromatic hydrocarbons or chromium (VI)
• Tested quality: Tested in own laboratory for compliance with European standards
• Prevents unintended movement: Wheel lock for manual operation
• Secured stand: Total lock for simultaneously locking the wheel and swivel housing
• User-friendly central lock: Simultaneous locking of more than one castor using a central actuation lever
• Colour matching: Colors can be adapted to match product design
• Award-winning design: Awarded by international juries
• Reduced risk of accidents: Extremely low height to reduce risk under hospital beds
• Low-maintenance wheels: Thread guards for unobstructed operation with minimal cleaning effort
• Non-marking movement: Wheels with reduced abrasion and minimal cleaning requirements
• Ergonomically friendly use: Wheels with optimized rolling resistance to reduce user effort
• Certified conductivity: Conductive version to protect users and electrical devices from electrostatic discharge
• Certified safety: TÜV Süd certified performance standard
• Optimised manoeuvrability: Twin wheel castor with high maneuverability due to differential effect

Caractéristiques / spécifications techniques

• Article Number: 5944USC150R36-34XS S27 safety OH155
• EAN: 4031582412864
• Series / Product name: Linea clinic
• Type: Swivel castor with central, total or directional lock
• Certification: Tested and monitored by TÜV Süd
• Overall width: 2.8 in
• Overall height: 6.1 in
• Overall weight: 2.48 lb
• Load capacity (dynamic) at 3 km/h: 330.69 lb
• Load capacity (dynamic) at 4 km/h: 330.69 lb
• Load capacity (static): 661.39 lb
• Temperature range (minimum): 14 °F
• Temperature range (maximum): 104 °F
• Standard: similar EN12531 - Hospital Bed Castors
• Electric conductive: yes (conductive tread)
• Fitting type: Stem with cam hole for profile bars, short version
• Bolt diameter: 1.26 in
• Bolt length: 1.65 in
• Housing - Fork shape: Twin wheel housing
• Housing material: Polyamide
• Swivel bearing: Precision ball bearing
• Swivel interference: 10 in
• Offset: 1.87 in
• Swivel radius: 4.82 in
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected, electric-conductive
• Tread width: 0.59 in
• Wheel diameter: 5.91 in
• Threadguards: With threadguard
• Bearing: Precision ball bearing, stainless
