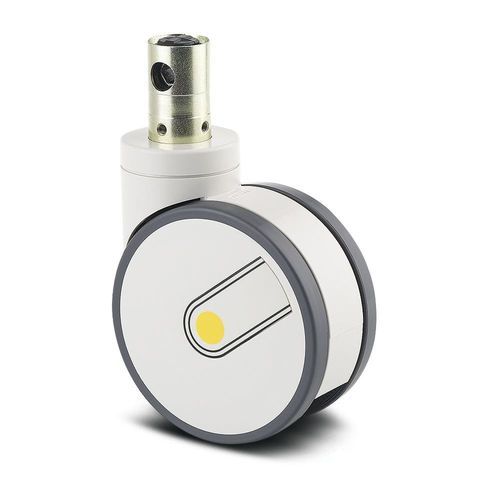

Hospital bed wheel Integral twin

anti-staticwith brakepolyamide

Overview The Integral twin is a swivel castor with a central total lock developed for hygiene-critical environments such as hospital and medical beds. It features a short stem with cam hole for profile bars and a pressed medium-grade steel housing. The wheel is polyamide with an injected electrically conductive polyurethane tread and sealed precision ball bearings. Washable versions must be sealed in the fitting area by the bed manufacturer.

Features

• Central total lock (simultaneous locking of multiple castors via a central actuation lever)
• Injected polyurethane, electrically conductive tread
• Polyamide wheel body
• Sealed precision ball bearings in wheel and swivel
• Threadguard for unhindered operation and low maintenance
• Pressed medium-grade steel sheet housing, zinc plated
• Non-marking movement with reduced abrasion
• Certified conductivity (protects users and equipment from electrostatic discharge)
• Tested and monitored by TÜV Süd

Technical specifications

• Commercial denomination: Integral twin
• Article number: 2946USX125R36-32S30 4xM6
• EAN: 4031582340969
• Type: Swivel castor with central total lock
• Wheel diameter: 4.92 in (125 mm)
• Overall height: 5.91 in (150 mm)
• Overall width: 2.36 in (60 mm)
• Tread width: 0.47 in (12 mm)
• Body material (wheel): Polyamide
• Tread material: Injected polyurethane, electrically conductive
• Tread hardness: 40 Shore D
• Wheel bearing: Sealed precision ball bearing
• Swivel bearing: Precision ball bearing
• Fork shape: Twin wheel housing
• Housing material: Medium-grade steel sheet (pressed, zinc plated)
• Threadguards: With threadguard
• Fitting type: Stem with cam hole for profile bars, short version (32 mm)
• Bolt diameter: 1.26 in (32 mm)
• Bolt length: 2.01 in (51 mm)
• Offset: 1.48 in (38 mm)
• Swivel radius: 3.94 in (100 mm)
• Swivel interference: 7.87 in (200 mm)
• Load capacity (at 3 km/h): 275.58 lb (125 kg)
• Load capacity (at 4 km/h): 275.58 lb (125 kg)
• Load capacity (static): 551.16 lb (250 kg)
• Overall weight: 2.64 lb (1.2 kg)
• Temperature range: -22 °F to 176 °F (-30 °C to 80 °C)
• Standards / similarity: similar to EN 12531 - Hospital Bed Castors
• Certification: Tested and monitored by TÜV Süd
• Washability: Washable according to AK-BWA (washable beds require sealing in the fitting area by the bed manufacturer)

Compliance & notes

• Protective seal and sealed bearings provide resistance to spray water and contamination
• Chemically resistant components suitable for disinfectants used in healthcare environments
• Low-maintenance design with integrated cable protection
• Optimized maneuverability via twin-wheel differential effect
