Medical trolley wheel Agila

for hospital bedrubberanti-corrosion

Overview

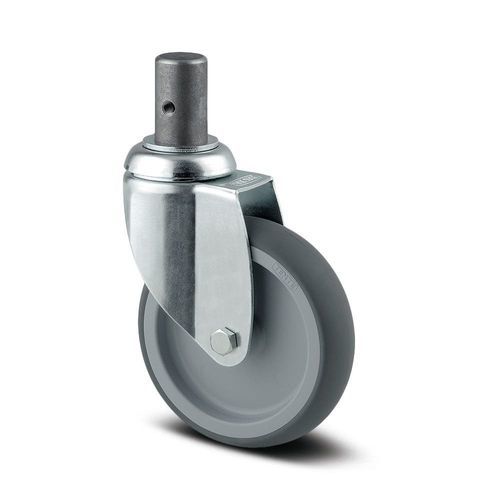

The Agila swivel castor with solid stem (round fitting) is designed for secure mounting and smooth directional control. The pressed steel housing with blue passivation and a double ball-race swivel bearing provide reliable steering under load. The wheel combines a polypropylene body with a thermoplastic rubber tread for quiet, non-marking movement and good floor protection; wheel rotation uses a plain bearing for dependable operation.

Key specifications (summary)

• Wheel diameter: 4.92 in
• Overall height: 6.42 in
• Dynamic load capacity (at ~3 km/h): 220.46 lb
• Static load capacity: 440.92 lb

Advantages

• Non-marking, low-abrasion movement
• Tested for compliance with European standards
• Fitting and part options simplify maintenance

Features

• Wheel: Thermoplastic rubber tread on polypropylene body (plain bearing)
• Swivel head: Two ball races (double ball bearing) for easy steering
• Fitting: Solid stem, round fitting (32 mm)
• Housing: Pressed steel, medium gauge; blue passivated
• Threaded axle for straightforward wheel replacement
• Temperature range: -4 °F to 140 °F

Applications

• Care beds and medical trolleys
• Catering and meal-delivery carts
• Hospitals and nursing homes
• Professional cleaning equipment
• Store fixtures and display units

Special features

• RoHS and REACH compliant — no PAHs or chromium (VI)
• Laboratory-tested quality according to EN12530
• Pressed steel housing with corrosion-resistant passivation
• Threaded axles enable resource-conserving part replacement
• Non-marking tread reduces cleaning and floor wear
• Easy steering via double ball-race swivel

Technical specifications

• Article Number: 2470PJO125R05-32
• EAN / GTIN13: 4031582300819
• Product name / Series: Agila
• Type: Swivel castor
• Wheel diameter: 4.92 in
• Overall height: 6.42 in
• Load capacity (dynamic at 3 km/h): 220.46 lb
• Load capacity (static): 440.92 lb
• Overall weight: 2.13 lb
• Temperature range (minimum): -4 °F
• Temperature range (maximum): 140 °F
• Standard: EN12530 - Devices Castors
• Electric conductive: No
• Stainless: No
• Fitting type: Solid stem, round
• Bolt diameter: 1.26 in
• Bolt length: 1.77 in
• Housing color: Blue passivated
• Housing material: Steel sheet, medium
• Fork shape: Broad
• Swivel bearing: Two ball races
• Swivel interference: 8.15 in
• Offset: 1.61 in
• Swivel radius: 4.07 in
• Wheel body material: Polypropylene
• Tread material: Thermoplastic rubber
• Tread hardness: 87 Shore A
• Tread width: 1.26 in
• Bearing (wheel): Plain bearing
• Threadguards: Without threadguard
