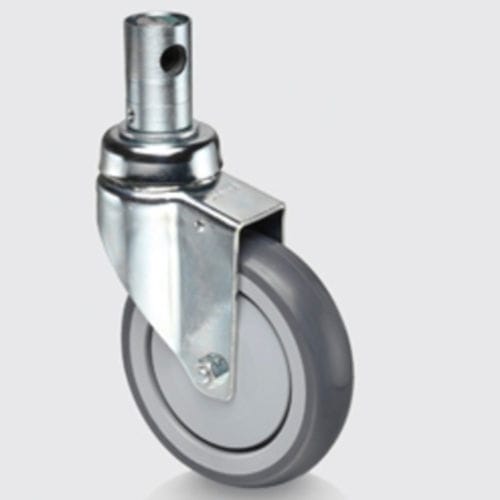

Hospital bed wheel Agila care US

with brakepolyamidepolyurethane

Description
The Agila care US is a swivel castor with a central total lock designed for medical and sterile environments. It is fitted with a short stem with cam hole for profile bars (32 mm). The pressed medium‑grade steel housing is zinc plated (blue passivated) and contains a precision ball bearing swivel mechanism for smooth directional changes. The wheel has a polyamide body with injected polyurethane tread mounted on precision ball bearings. Wheel diameter: 7.87 in; overall height: 9.45 in. Dynamic load capacity is 330.69 lb (at 3 km/h and 4 km/h); static load capacity is 661.39 lb.

Key features

• Central total lock for simultaneous locking of multiple castors via a central actuation lever
• Fitting: short stem with cam hole for profile bars, 32 mm
• Wheel construction: polyamide body with injected polyurethane tread
• Bearings: precision ball bearings for wheel and swivel
• Overall height: 9.45 in
• Wheel diameter: 7.87 in
• Load capacity (dynamic at 3 km/h and 4 km/h): 330.69 lb
• Load capacity (static): 661.39 lb
• Temperature range: -40 °F to 176 °F
• Threadguard: with threadguard for unobstructed operation

Special Features

• Materials comply with RoHS and REACH; free from polycyclic aromatic hydrocarbons and chromium (VI)
• Tested in manufacturer laboratory for compliance with relevant standards (similar to EN12531 for hospital bed castors)
• Solid pressed steel housing, zinc plated (blue passivated)
• Manual wheel lock to prevent unintended movement
• Wheels suitable for steam sterilisation in autoclaves used in sterile areas
• Low‑maintenance design with threadguards to minimise cleaning effort
• Non‑marking tread to reduce contamination and cleaning needs
• Optimised rolling resistance to reduce user effort during handling

Technical specifications

• Article Number: 2446UAP200R36-32S
• EAN: 4031582387483
• Product name / Series: Agila care US
• Type: Swivel castor with central total lock
• Diameter (wheel): 7.87 in
• Overall height: 9.45 in
• Tread material: Polyurethane, injected
• Body material (wheel): Polyamide
• Tread width: 1.26 in
• Hardness of tread: 40 Shore D
• Bearing (wheel & swivel): Precision ball bearing
• Threadguards: With threadguard
• Load capacity (at 3 km/h): 330.69 lb
• Load capacity (at 4 km/h): 330.69 lb
• Load capacity (Static): 661.39 lb
• Temperature range (Minimum): -40 °F
• Temperature range (Maximum): 176 °F
• Fitting type: Stem with cam hole for profile bars, short version
• Bolt diameter: 1.26 in
• Bolt length: 1.97 in
• Housing color: Blue passivated
• Housing material: Steel sheet, medium (pressed steel, zinc plated)
• Fork shape: Broad
• Swivel interference: 12.76 in
• Offset: 2.44 in
• Swivel radius: 6.38 in
• Standard: similar EN12531 - Hospital Bed Castors
• Electric conductive: No
• Stainless: No
