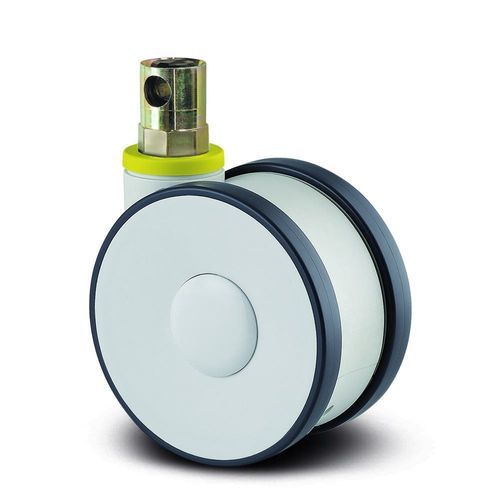

Polyurethane wheel Linea clinic

polyamideswivelingwith brake

Short description
The LINEA clinic is a swivel castor with options for central, total or directional locking. It features a short stem with cam hole for profile bars and is designed for washable beds (sealing at the fitting area must be provided by the bed manufacturer).

Product advantages

• Non-hazardous materials compliant with RoHS and REACH
• Tested performance and TÜV Süd monitored certification
• Colour options to match product design

Detailed description
The housing is made of polyamide and integrates a precision ball bearing swivel system. Wheel body in polyamide with injected, conductive polyurethane tread and stainless precision ball bearing. Wheel diameter: 125 mm (4.92 in). Overall height: 130 mm (5.12 in). Dynamic load capacity: 150 kg (330.69 lb) at ~3 km/h and ~4 km/h. Static load capacity: 300 kg (661.39 lb). Suitable for medical equipment such as anesthesia carts, C-arms, CT/MRI/X-ray equipment, dialysis and medication carts, hospital beds, stretchers, ultrasound devices and ventilators.

Special features

• Non-hazardous materials: Complies with RoHS and REACH; free of PAHs and chromium (VI).
• Tested quality: Laboratory-tested for compliance with relevant European standards.
• Prevents unintended movement: Manual wheel lock option.
• Secured stand: Total lock simultaneously secures wheel and swivel housing.
• User-friendly central lock: Central actuation lever for locking multiple castors simultaneously.
• Colour matching: Wheel and housing colours can be adapted.
• Award-winning design: Recognised by international juries.
• Reduced accident risk: Extremely low overall height to reduce entrapment under beds.
• Low-maintenance wheels: Thread guards for unobstructed operation and easy cleaning.
• Non-marking movement: Low abrasion tread for minimal cleaning and floor protection.
• Ergonomic use: Optimised rolling resistance to reduce user effort.
• Certified conductivity: Conductive version protects equipment and users from electrostatic discharge.
• Certified safety: TÜV Süd monitored performance standard.
• Optimised manoeuvrability: Twin wheel housing with differential effect for high manoeuvrability.

Performance overview

• Roll performance: very good
• Movement noise: good
• Attrition: good
• Corrosion resistance: good

Technical specifications

• Article Number: 5944USC125R36-34XS S27 safety OH130
• EAN: 4031582412680
• Certification: Tested and monitored by TÜV Süd
• Type: Swivel castor with central, total or directional lock
• Product name / Series: LINEA clinic
• Overall width: 71 mm (2.8 in)
• Overall height: 130 mm (5.12 in)
• Overall weight: 0.9 kg (1.98 lb)
• Diameter (wheel): 125 mm (4.92 in)
• Tread width: 15 mm (0.59 in)
• Body material (wheel): Polyamide
• Tread material: Polyurethane, injected, electric-conductive
• Bearing (wheel & swivel): Precision ball bearing (stainless for wheel bearing)
• Threadguards: With threadguard
• Load capacity (dynamic) at ~3 km/h (1.86 mph): 150 kg (330.69 lb)
• Load capacity (dynamic) at ~4 km/h (2.49 mph): 150 kg (330.69 lb)
• Load capacity (static): 300 kg (661.39 lb)
• Temperature range: -20 °C (-4 °F) to 80 °C (176 °F)
• Standard: similar EN12531 - Hospital Bed Castors
• Electric conductive: yes
• Fitting hint: Washable beds must be sealed in the fitting area by the hospital bed manufacturer.
• Fitting type: Stem with cam hole for profile bars, short version
• Bolt diameter: 32 mm (1.26 in)
• Bolt length: 42 mm (1.65 in)
• Housing fork shape: Twin wheel housing
• Housing material: Polyamide
• Swivel interference: 205 mm (8.07 in)
• Offset: 40 mm (1.57 in)
• Swivel radius: 103 mm (4.04 in)
