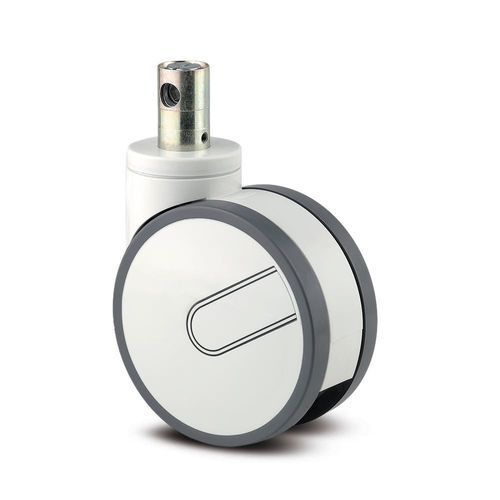

Hospital bed wheel Integral twin

with brakepolyamidepolyurethane

Product overview The Integral twin swivel castor with central total lock is designed for medical equipment requiring secure, simultaneous locking and smooth mobility. It features a short stem with cam hole for profile bars, a pressed steel housing and precision ball bearings for swivel and wheel.

Product advantages

• Non-hazardous materials
• Tested quality
• Award-winning design

Features

• Type: Swivel castor with central, total lock
• Series / Product name: Integral twin
• Fitting: Stem with cam hole for profile bars, short version, 32 mm
• Threadguards: With threadguard
• User-friendly central lock: simultaneous locking of multiple castors via central actuation lever
• Multistage switching: up to three positions (directional lock, total lock, free mobility)
• Non-marking movement and low-maintenance wheels (reduced abrasion and protected operation)

Technical specifications

• Article Number: 2946UAP100R36-32S30 D 9002 4xM6
• EAN / GTIN13: 4031582302592
• S4 Material Number: 990060550
• Certification: Tested and monitored by TÜV Süd
• Standard: EN12531 - Hospital Bed Castors
• Wheel diameter: 3.94 in
• Overall height: 5.08 in
• Overall width: 2.48 in
• Body width (wheel body): 0.59 in
• Tread width: 0.59 in
• Tread hardness: 92 Shore A / 42 Shore D
• Body material: Polyamide
• Tread material: Polyurethane, injected
• Wheel bearing: Precision ball bearing
• Swivel bearing: Precision ball bearing
• Dome diameter: 2.42 in
• Swivel interference (required clearance): 6.69 in
• Offset: 1.22 in
• Swivel radius: 3.35 in
• Bolt mounting holes quantity: 4
• Bolt diameter: 1.26 in
• Bolt length: 2.01 in
• Bolt thread position: 0.28 in
• Housing color: Gray white (RAL9002)
• Fork shape: Twin wheel housing
• Housing material: Steel sheet, medium (pressed steel, zinc plated)
• Load capacity at 3 km/h (dynamic): 275.58 lb
• Load capacity at 4 km/h (dynamic): 275.58 lb
• Static load capacity: 826.73 lb
• Overall weight: 2.3 lb
• Temperature range: -13 °F to 176 °F
• Electric conductive: not applicable
• Stainless option: not applicable
