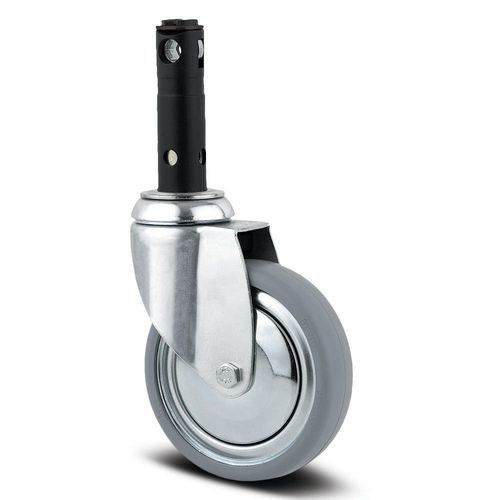

Hospital bed wheel Agila care

with brakerubberanti-corrosion

Product overview
The Agila care is a swivel castor for healthcare equipment with central, total or directional lock. It features a stem with cam hole for profile-bar fittings to ensure secure attachment to medical beds and equipment. The pressed medium steel sheet housing (zinc plated, blue passivated finish available) incorporates two ball races for the swivel bearing, delivering smooth directional movement. The wheel has a sheet-steel core with a solid rubber, non-marking tread and cone ball bearing technology for consistent rolling performance. Wheel diameter: 3.94 in (≈100 mm); overall height: 5.43 in (≈138 mm), providing compact maneuverability and suitable ground clearance for clinical environments.

Short features

• Wheel diameter: 3.94 in (≈100 mm)
• Overall height: 5.43 in (≈138 mm)
• Load capacity (dynamic at 3 km/h / ≈1.86 mph): 176.37 lb (≈80 kg)
• Static load capacity: 352.74 lb (≈160 kg)
• Wheel tread: Solid rubber, non-marking
• Bearing: Cone ball bearing (wheel) / two ball races (swivel)

Special features

• Compliance: Materials conform to RoHS and REACH; free from polycyclic aromatic hydrocarbons and chromium (VI).
• Tested quality: Manufacturer laboratory testing for compliance with European standards (EN12530).
• Sterile cleaning: Wheels suitable for steam sterilisation in autoclaves used in sterile areas.
• Solid housing: Pressed medium steel sheet housing, zinc plated (blue passivated finish available).
• Prevents unintended movement: Manual wheel lock available.
• Total lock: Simultaneous locking of wheel and swivel housing for secure stand.
• Central lock option: Enables simultaneous locking of multiple castors via a central actuation lever.
• Low-maintenance: Thread guards reduce ingress and simplify cleaning.
• Non-marking movement: Tread designed for reduced abrasion and minimal floor cleaning.
• Easy steering: Swivel head with double ball bearings ensures smooth guidance.

Applications

• Care beds
• Hospitals
• Nursing and retirement homes

Technical specifications

• Product name: Agila care
• Type: Swivel castor with central, total or directional lock
• Article number: 2474DIK100R26-28S45
• EAN: 4031582301533
• Wheel diameter: 3.94 in (≈100 mm)
• Overall height: 5.43 in (≈138 mm)
• Tread width: 1.26 in (≈32 mm)
• Tread material: Solid rubber, non-marking
• Body material (wheel): Sheet steel
• Hardness of tread: 80 Shore A
• Bearing (wheel): Cone ball bearing
• Swivel bearing: Two ball races
• Swivel radius: 3.46 in (≈88 mm)
• Offset: 1.5 in (≈38 mm)
• Swivel interference: 6.93 in (≈176 mm)
• Load capacity (dynamic at 3 km/h / ≈1.86 mph): 176.37 lb (≈80 kg)
• Load capacity (static): 352.74 lb (≈160 kg)
• Overall weight: 2.35 lb (≈1.07 kg)
• Fitting type: Stem with cam hole for profile bars
• Bolt diameter: 1.1 in (≈28 mm)
• Bolt length: 3.78 in (≈96 mm)
• Housing material: Steel sheet, medium
• Housing color / finish: Blue passivated (zinc plated)
• Fork shape: Broad
• Threadguards: With threadguard
• Temperature range: -4 °F (≈-20 °C) to 185 °F (≈85 °C)
• Standard: EN12530 - Devices Castors
• Electric conductive: not applicable / not conductive
