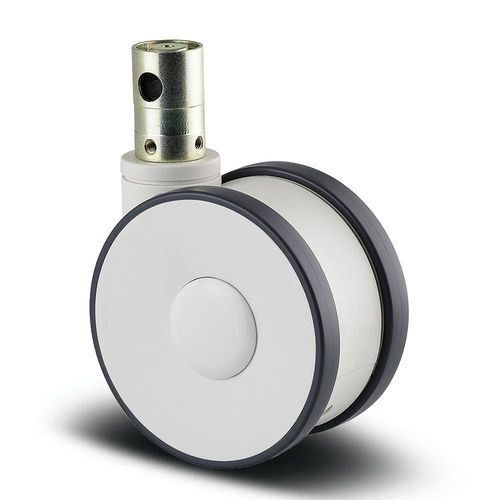

Medical trolley wheel Linea clinic

for hospital bedfor stretcherwith brake

Product overview
The Linea clinic swivel castor with central, total or directional lock is engineered for medical equipment in hospitals and care facilities. It features a stem with cam hole for profile bars (short version), a polyamide housing with precision ball bearing swivel and a polyamide wheel with injected polyurethane tread and stainless precision ball bearing. Wheel diameter: 5.91 in (150 mm); overall height: 6.1 in (155 mm). Dynamic load capacity: 330.69 lb (at 3–4 km/h); static load capacity: 661.39 lb. Suitable for anesthesia carts, hospital beds, medication carts, stretchers, ventilators and diagnostic equipment.

Key features

• Non-hazardous materials (RoHS, REACH; free of PAHs and chromium (VI))
• Tested quality (in-house testing; TÜV Süd)
• Colour matching available to suit product design
• Wheel lock for manual braking to prevent unintended movement
• Total lock for simultaneous locking of wheel and swivel housing
• Central lock: single lever actuation for locking multiple castors
• Low-maintenance design with thread guards for uninterrupted operation
• Non-marking tread with reduced abrasion and minimal cleaning needs
• Twin wheel design improves manoeuvrability via differential effect
• Certified safety and award-winning design

Applications

• Anesthesia carts
• Hospital beds
• Medication carts
• Stretchers
• Ventilators
• C-arms, CT, MRI and X-ray equipment
• Computers on wheels
• Dialysis carts
• Nursing carts
• Ultrasound equipment

Technical specifications

• Article Number: 5944UAC150R36-32S27 safety OH155
• EAN: 4031582412826
• Product name / Series: Linea clinic
• Type: Swivel castor with central, total or directional lock
• Overall height: 6.1 in (155 mm)
• Wheel diameter: 5.91 in (150 mm)
• Overall width: 2.8 in (71 mm)
• Tread width: 0.59 in (15 mm)
• Wheel body material: Polyamide
• Tread material: Injected polyurethane
• Tread hardness: 92 Shore A
• Bearing: Stainless precision ball bearing
• Swivel bearing: Precision ball bearing
• Swivel interference: 10 in
• Offset: 1.87 in (47.5 mm)
• Swivel radius: 4.82 in (122.5 mm)
• Dynamic load capacity (at 3 km/h): 330.69 lb
• Dynamic load capacity (at 4 km/h): 330.69 lb
• Static load capacity: 661.39 lb
• Overall weight: 2.56 lb (1.16 kg)
• Bolt diameter: 1.26 in (32 mm)
• Bolt length: 1.97 in (50 mm)
• Fork / Housing: Twin wheel housing
• Housing material: Polyamide
• Threadguards: With threadguard
• Standard: similar EN12531 - Hospital Bed Castors
• Certification: Tested and monitored by TÜV Süd
• Temperature range: 14 °F to 104 °F (-10 °C to 40 °C)
• Electric conductive: no
• Stainless: yes
• Fitting type: Stem with cam hole for profile bars, short version
• Fitting hint: Washable beds must be sealed in the fitting area by the hospital bed manufacturer
