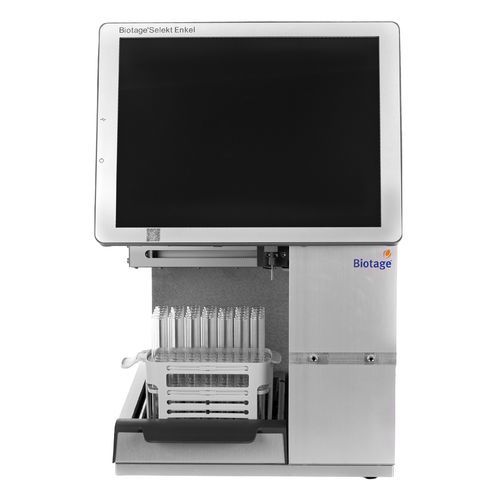

Automated flash chromatography system Selekt Enkel

flashfor researchfor drug discovery

Overview
Biotage® Selekt Enkel is an automated flash chromatography system optimized for small-scale, routine purification in drug discovery and research laboratories. Built for small-scale research, it supports high loading pre-packed columns and features UV detection, two solvent lines with binary gradient support, and a single column line. The system is modular and can be expanded with optional upgrades such as network access, remote monitoring, ELSD, RFID, and liquid level sensors.

Main benefits

• Automated flash chromatography for small-scale, routine purification.
• Intuitive touchscreen interface with advanced software tools for easy control and workflow optimization.
• Remote control capabilities for added convenience and monitoring.
• Compatibility with high-capacity pre-packed columns (5 g to 120 g) for faster separations and reduced solvent use.
• Two solvent lines with binary gradient support to enable flexible method development.

Features

• Intuitive 15.0” solvent-stable TFT LCD touchscreen with on-screen QWERTY keyboard.
• Advanced software features including Gradient Optimization, Bypass Tray Collection, Initial Waste, Peak Hold, and 3D visualization.
• Standard QR column scanner and rack handling; optional ELSD, RFID, liquid level sensors and network upgrades.
• Supports Biotage® Sfär high-loading columns to reduce solvent consumption and speed separations.
• Multiple collection rack types supported (13 x 100 mm up to 480 mL bottles) and up to 144 fractions without rack change.

Technical specifications

• Flow rate range: 1–150 mL/min, in 1 mL/min increments.
• Column channels: One.
• Maximum number of fractions: 144 fractions with no rack change (288 with two collection trays) using 13 x 100 mm racks.
• Max total fraction volume: 3,840 mL with no rack change (7,680 mL with two collection trays); supports 480 mL bottle racks.
• Location: Install in a laboratory fume hood capable of handling solvent leakage and providing suitable airflow to prevent build-up of flammable vapors.
• Ambient operating temperature: 15–32 °C (59–90 °F).
• Storage and transport temperature: -25–60 °C (-13–140 °F).
• Humidity: 20–95% RH (non-condensing).
• Altitude: Operation up to 2000 m above sea level.
• Pollution degree: Install in a level 2 environment in accordance with EN 60664-1.
• Electrical supply: 100–127 VAC or 220–240 VAC, 50/60 Hz. Connect only to a grounded outlet.
• Fuses: T4A-250 VAC, P/N 411916 (2 required).
• Maximum power consumed: 300 VA.
• Fluid path (wetted) materials: stainless steel, FFKM, PEEK, PP, PE, FEP, PTFE, silica, carbon fiber filled PTFE, fused silica; compatible with common chromatographic solvents.
• Weight: 23–25 kg (50–54 lbs.) depending on system configuration.
• Dimensions (footprint W x D): 335/550 mm x 393 mm (13.2/21.7” x 15.5”); height: 545 mm (21.5”) excluding secondary solvent containment. Width depends on one or two collection trays.
• Interfaces: 15.0” (1024 x 768 px) solvent-stable TFT LCD touch screen.
• Ports: Ethernet port, 4 USB ports, 2 D-Sub 9-pin ports, AUX port.
• Data entry: Touchscreen or USB connection to mouse/keyboard.
• Software: UNIX-based Java interface with full on-screen QWERTY keyboard.
• Certification: CE and FCC marked; CB and NRTL certified.
• Solvent supply: Two solvent lines standard. Optional secondary solvent containment supports up to 4 x 5 L reservoirs. Note: comply with secondary containment regulations; do not use containers larger than 4 L in secondary containment.
• Rack types supported: 13 x 100 mm, 16 x 100 mm, 16 x 150 mm, 18 x 150 mm, 25 x 150 mm, 120 mL, 240 mL, 480 mL.
• Internal detector wavelength: UV 200–400 nm. Amplitude range: 0 to 6400 mAU; accuracy ±5 mAU.
• Pressure range: 0–15 bar (0–1500 kPa; 0–217 psi).
• Gradient precision: ±2%.
