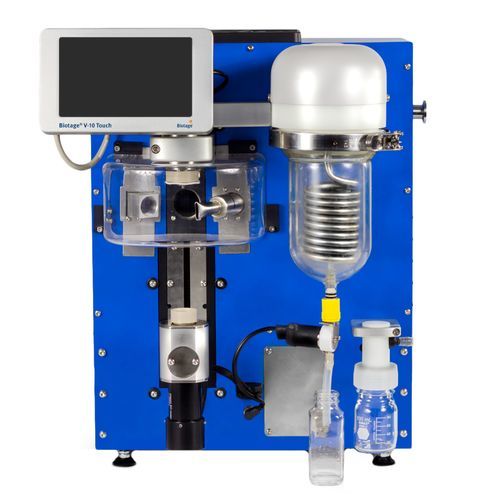

Sample evaporator V-10 Touch

laboratoryvacuumsolvent

Overview
Automated evaporation system for gentle, walk-up/walk-away removal of aqueous and organic solvents from vials and sample racks. Rapidly dries HPLC fractions and high‑boiling solvents (e.g., NMP, DMF, DMSO with external vacuum) while enabling solvent reclamation to reduce emissions and simplify workflows in organic and peptide chemistry.

Main features

• Walk-up, walk-away operation for unattended evaporation of sample racks and individual vials.
• Integrated touch-screen control for real-time temperature and pressure management and method configuration.
• Vacuum-assisted evaporation: built-in vacuum pump with KF‑16 flange for optional external pump connection to accelerate evaporation of very high‑boiling solvents.
• High rotational speed up to 8,000 rpm to enable fast evaporation without bumping and to minimize contamination risk.
• Internal refrigerated condenser for rapid vapor condensation and reduced emissions.
• Solvent reclamation capability to capture and reclaim evaporated solvents.
• Built-in methods and flexible programming; supports automation integration (liquid handler, solvent management) and API for remote control.
• Optional carousel for sequential evaporation and high-throughput HPLC fraction processing.

Additional descriptive points

• Rapid drying from aqueous and organic matrices, including HPLC fractions and high‑boiling solvents.
• Supports greener workflows by capturing solvents in the internal condenser and enabling higher concentration workflows with reduced solvent volumes.
• Precise interface control of temperature and pressure; built-in methods simplify common solvent protocols while flexible programming adapts to specific procedures.

Technical specifications

• Solvent compatibility: effective for solvents with boiling points ~30 °C to 160 °C (up to 205 °C with external vacuum pump). Not suitable for solutions containing HCl at any concentration.
• Solvent reclamation: up to 98% of solvent vapours under typical conditions.
• Rotational speed: 3,000–8,000 rpm.
• Vacuum: internal vacuum pump (~5 mbar spec); external vacuum pump connection via KF‑16 flange for very high‑boiling solvents.
• Heating range: 20 °C to 70 °C.
• Condenser: refrigerated condenser down to -25 °C; automated and manual draining; manual defrost.
• Exhaust: double trapping.
• Supported vial sizes: 30 mL, 20 mL, 16 mL, 8 mL, 4 mL (variants).
• Maximum power: 2100 VA. Electrical supply: 220–240 V~, 50/60 Hz, 10 A.
• Weight: 50 kg. Footprint (W x D): 400 mm x 480 mm; Height: 530 mm.
