Flash chromatography detector Flash 150

UV

Product type

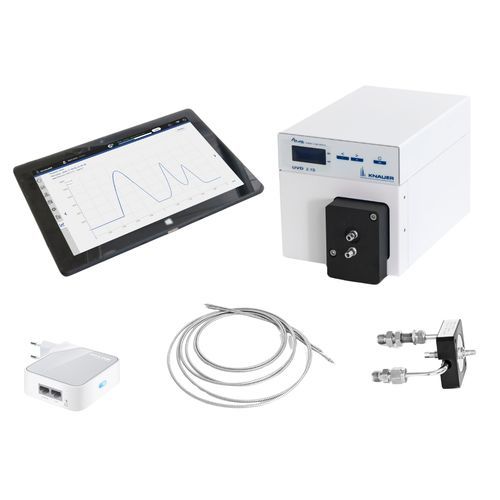

Fiber optic UV monitor kit designed to support fraction collection during large-scale purification.

Overview
We combine a robust, reliable UV monitor with a specialized wireless tablet optimized for use in sensitive environments. The kit features fiber optic technology and a software package to provide flexible UV monitoring for Biotage® Flash 150 and Biotage® Flash 400 purification systems.

Benefits

• Reduce process risk and increase confidence when collecting fractions.
• Streamlines purification by improving fraction purity and reducing solvent consumption.
• Minimizes need to evaporate large fraction volumes.
• Enhances safety by reducing manual handling of fractions that may contain highly potent APIs (HP-APIs).
• Easily retrofitted to existing Biotage® Flash 150 and Flash 400 production-scale setups.

Ordering information (selection)
Part no. | Name | Pack size | Price
416243SP | 10M Fibre optic cable | 2 | Get a quote
416241SP | 3M Fibre optic cable | 2 | Get a quote
416242SP | 5M Fibre optic cable | 2 | Get a quote
416239SP | Flow Cell, 2mm, 1/4" SS for Biotage® Flash 75/150 systems | 1 | Get a quote
416240SP | FlowCell, TriClamp, 2mm, 1/2" SS for Biotage® Flash 400 systems | 1 | Get a quote
416238SP | Test Cell, stray light filter, fiber optic connector | 1 | Get a quote
UV-FL150 | UV Monitor for Biotage® FLASH 150 system [UV Monitor, Tablet, SW, Fibre Optics, Flow Cell, Connections, Tablet Holder] | 1 | Get a quote
UV-FL400 | UV Monitor for Biotage® FLASH 400 system [UV Monitor, Tablet, SW, Fibre Optics, Flow Cell, Connections, Tablet Holder] | 1 | Get a quote
UV-UPGRD FL150/400 | UV Monitor upgrade for Biotage® Flash 400 (from 150), [Flow Cell, Connections] | 1 | Get a quote

Resources / Literature
Product note: "UV monitor for Biotage® Flash 150 and 400" (downloadable product note available).

Caractéristiques / spécifications techniques

• Drift and linearity: 4.0 x 10-4 AU/h at 254 nm (fiber optics version) (ASTM E1657-98); linearity > 2.0 AU at 270 nm (ASTM E1657-98).
• Wavelength range: 190–500 nm ± 3 nm, precision 0.7 nm (ASTM E1657-98).
• Flow cell (Biotage® Flash 150): Path length options 0.5 / 1.25 / 2 mm; volumes 1.7 / 4.3 / 6.8 μl; material: stainless steel; max flow rate 10 L/min; max pressure 200 bar.
• Flow cell (Biotage® Flash 400): Path length options 0.5 / 1.25 / 2 mm; material: stainless steel; max flow rate 10 L/min; max pressure 80 bar.
• Weight: 1.5 Kg.
• Operating conditions: 4–40 °C (39.2–104 °F); humidity <90%, non-condensing.
• Dimensions: Modular system; base unit dimensions 121 × 129 × 187 mm (W x H x D).
• Power requirements: External input 100 - 240 V; output 24 V DC, 60 W.
• Control and outputs: Analog output 1 x ± 2.5 V scalable, 20 bit, max data rate 50 Hz (LAN), 20 Hz (Analog), 10 Hz (RS-232); inputs: Autozero, Start (IN), Error (IN or OUT), 0–10 V Analog IN. Digital interfaces: RS-232, LAN, remote connector. Analog: wavelength control. Manual control via front panel.
