Microplate evaporator Biotage® SPE Dry

for sampleslaboratorynitrogen

Overview
Fast, controlled well-plate evaporation using heated nitrogen flow delivered above and below each well. Independent airflow control reduces splashing and cross-contamination while preserving sample integrity for sensitive peptide and bioanalytical workflows. Offers a rapid, straightforward alternative to lyophilization for solvent removal directly in microplates.

Key features

• Heated gas flow from both above and below wells to accelerate evaporation
• Independent airflow control per head to prevent splashing and cross-contamination
• Support for multiple plate formats: 24, 48, 96, 384 wells
• Compact, user-friendly design for high-throughput laboratories
• Suitable for sensitive peptide and bioanalytical workflows
• Available in single-plate and dual-plate evaporation configurations

Configurations

• Biotage® SPE Dry 96 — single microplate evaporation

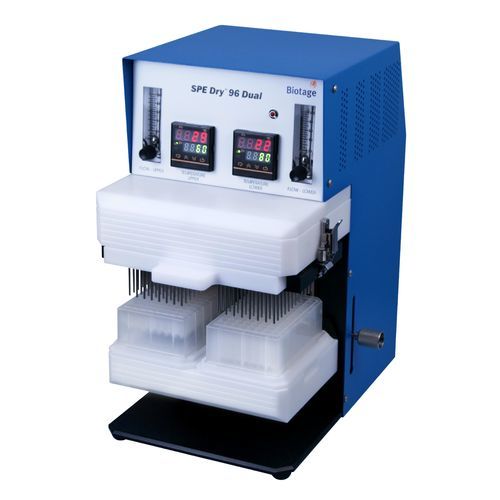

• Biotage® SPE Dry 96 Dual — simultaneous evaporation of two plates (Dual)

Applications

• Solvent removal directly in well plates
• High-throughput sample concentration and preparation workflows
• Peptide workflows and other procedures sensitive to splashing or cross-contamination

Technical specifications

• Plate format: 24, 48, 96 or 384-well plates
• Heating: 60 °C upper head, 80 °C lower head
• Gas flow rate: 25–60 L/min (Single), up to 90 L/min (Dual)
• Dimensions: SPE Dry 96: 242 x 400 x 306 mm (9.5 in x 15.7 in x 12.1 in), 11.4 kg (25 lbs)
  SPE Dry Dual: 254 x 394 x 381 mm (10.0 in x 15.5 in x 15.0 in), 13.9 kg (31 lbs)
• Power supply: 100 to 240 V, 50/60 Hz
• Maximum power consumed: 405 W (nominal)
• Fuses: 5 A T250 V
• Timer: Manual
• Maximum sample volume (collection plates): 10 mL
• Gas supply requirement: Minimum 15 psi, Maximum 65 psi
• Max sound level: 65 dB(A)
• Certifications: EN61326 (1997 w/A1:98 & A2:01) Class A
