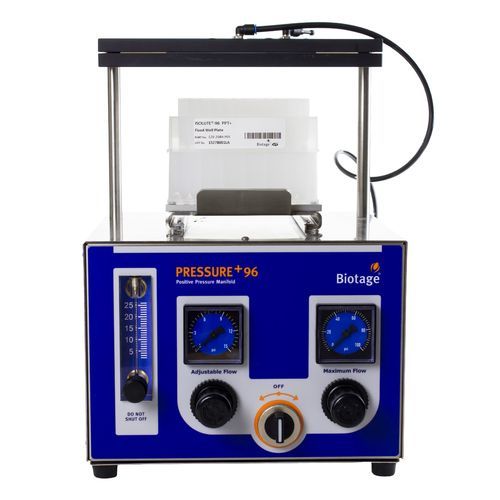

Laboratory manifold PRESSURE+

for solid-phase extractionSPEfor laboratory samples

Overview
Positive pressure manifold delivering consistent, uniform positive pressure to move low- and high-viscosity liquids in 96-well plates and in 1, 3 and 6 mL cartridge formats. Two format variants available for cartridge and plate processing.

Key features

• Supports gas pressures up to 100 psi (6.9 bar) for increased pressure and force with viscous samples.
• Independent pressure control per port to improve reproducibility of analyte recoveries.
• Allows partially populated racks to be processed without loss of extraction efficiency.
• Two variants: PRESSURE+ 48 for cartridge processing and PRESSURE+ 96 for well-plate processing.
• Compatible with all standard 96-well plate formats and with 1‑ and 2 mL modular array wells without additional gaskets.

Applications / Use cases

• Cartridge processing: runs 1 to 48 cartridges (up to 6 mL) with independent port pressure control.
• High-throughput well-plate processing: compatible with 96-well formats for parallel sample preparation.
• Handles both low- and high-viscosity liquids for extraction and clean-up workflows in analytical laboratories.

Dimensions & physical requirements
PRESSURE+ 48: 335 x 305 x 390 mm (13.2" x 12.0" x 15.4").
PRESSURE+ 96: 271 x 305 x 325 mm (10.7" x 12.0" x 12.8").
Free space above and behind bench: at least 10 cm (4") for ventilation.

Ordering information (table)
Part no. | Name | Pack size | Price
PPM-48 | Biotage® PRESSURE+ 48 Positive Pressure Manifold | 1 | Get a quote
PPM-96 | Biotage® PRESSURE+ 96 Positive Pressure Manifold | 1 | Get a quote
SER-PPM-2YEXW | Extended Warranty - 12 Month Extension - Biotage® PRESSURE+ | 1 | Get a quote
SER-PPM-3YEXW | Extended Warranty - 24 month extension - Biotage® PRESSURE+ | 1 | Get a quote
SER-PPM-IN | Installation and Familiarization - Biotage® PRESSURE+ | 1 | Get a quote

Documentation
Product note available describing PRESSURE+ 48 and PRESSURE+ 96.

Technical specifications

• Weight: PRESSURE+ 48 — 14 kg (31 lbs); PRESSURE+ 96 — 11.8 kg (26 lbs).
• Humidity: 10-80% RH.
• Operating temperature: 5-40°C (41-104°F). Indoor use only.
• Gas supply: Minimum 60 psi (4.1 bar); Maximum 100 psi (6.9 bar); Optimum 80 psi (5.5 bar).
• Altitude: Suitable for use up to 2000 meters.
