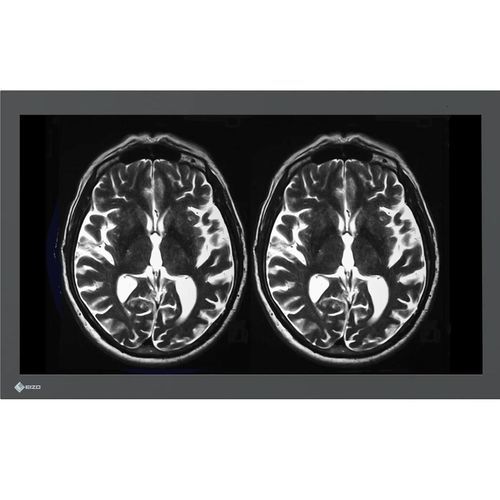

4K OR video system LX3240-MR

3840 × 2160

Overview
32" monitor with 4K UHD resolution (3840 x 2160) designed for image display in magnetic resonance imaging (MRI) environments. Built and shielded to operate in proximity to MRI scanners while minimising impact on magnetic fields.

Key Benefits

• Shielded against magnetic fields and designed to minimize impact on magnetic fields.
• Minimises effects on magnetic fields through use of special materials and shielding (resistant up to 100 mT at the monitor).
• Brightness stabilisation with fully automated stability system to keep luminance constant (compliant with medical standards such as DICOM® and Gamma 2.2).
• Flicker-free picture, distortion-free image geometry and a very large viewing angle for ergonomic viewing.
• Real-time image display with minimal picture delay for safe operation.

Product Features

• MRI Compatibility: Built using special materials to minimize impact on magnetic fields and resonators; monitor shielded against strong magnetic environments up to 100 mT (external power supply: lower magnetic tolerance).
• Perfect Picture Reproduction: IPS TFT panel enabling distortion-free image geometry, very large viewing angle and high luminance; flicker-free even at low refresh rates.
• Constant Brightness: Internal backlight sensor and automated stability system keep brightness consistent and quickly stabilised at system start.
• Flexible Connection Options: Supports multiple video sources and upscaling — DisplayPort™ 4K UHD input, DisplayPort™ Full HD input (upscaling Full HD to UHD), two HDMI® connectors supporting DVI signals (upscaling Full HD to UHD).
• Five Practice-Oriented Preset Modes: Calibrated at the factory with five preset modes for different applications and lighting; presets are color matched across all gray scale levels; on-site adjustments possible (color, ambient brightness adaptation).
• Installation: Compliant with VESA standards for attachment to mounting accessories such as ceiling suspensions.
• Compliance: Meets international medical safety and EMC standards (see specifications for certifications list).

Downloads & Data
Datasheet, product brochure, instructions for use and dimensions are available as product downloads (refer to authorised product documentation).

Caractéristiques / Spécifications techniques

• Model Variations: LX3240-MR: without stand, black
• Certifications & Standards: CE / UKCA (Medical Device); IEC/EN60601-1; CAN/CSA C22.2 No. 60601-1; ANSI/AAMI ES60601-1; EN60601-1-2 Class B; FCC-B; RoHS; WEEE
• Supplied Accessories: AC adapter + cable (15 m); Utility Disk (PDF Instructions for Use)
• Panel: IPS; Backlight: LED; Size: 80 cm / 31.5"; Native Resolution: 3840 x 2160 (16:9)
• Viewable Image Size (H x V): 697.3 x 392.2 mm
• Pixel Pitch (H x V): 0.181 x 0.181 mm
• Display Colors: 10-bit colors — 1.07 billion colors
• Viewing Angles (H / V, typical): 178° / 178°
• Brightness (typical): 1000 cd/m²
• Recommended Brightness for Calibration: 400 cd/m²
• Contrast Ratio (typical): 1300:1
• Response Time (typical): 14 ms (midtone)
• Color Gamut (typical): sRGB
• Video Input Terminals: DisplayPort™ (4K UHD); DisplayPort™ (Full HD); HDMI® (DVI signal Full HD) x 2
• Digital Scanning Frequency (H / V): 131.3 kHz / 60 Hz
• USB: Upstream — USB 2.0 Type-B (communication channel to host); Downstream — USB 2.0 Type-A x 2
• Power Requirements: AC power supply unit: 100-240 V, 50/60 Hz; Monitor: 24 VDC, 6 A
• Maximum Power Consumption: 155 W
• Power Save Mode: 20 W (DMPM mode)
• Power Management: DMPM; Power Output: DC 5V, 1A (Hirose)
• Features & Functions: Cal-Switch; resistance to magnetic fields up to 100 mT; Backlight Sensor; OSD Languages: English
• Environmental Specifications: Maximum Magnetic Field — Monitor: 100 mT; External power supply: 3 mT; Degree of Protection: IP20
• Physical Specifications: Net Weight: 17.2 kg ± 1 kg; Hole Spacing (VESA Standard): 100 x 100 mm and 200 x 100 mm, M4, depth 5–10 mm
