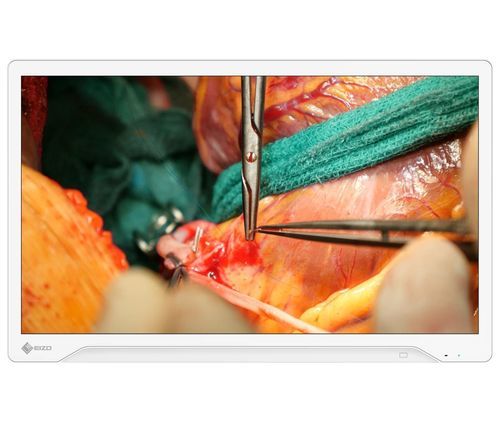

Operating room display CuratOR EX3245H

endoscopysurgical4K UHD

Overview
Surgical monitor in 32" widescreen format with 4K UHD (3840 x 2160) resolution, Mini‑LED backlight with high brightness and contrast designed for endoscopy, microsurgery and robot‑assisted procedures.

Key features

• Mini LED backlight with full‑array local dimming (>2,000 dimming zones) managed by EIZO algorithm for precise localized brightness and contrast control
• Peak brightness up to 1900 cd/m2 and extremely high contrast (typical 1,000,000:1)
• HDR support (PQ and HLG) to reproduce wide luminance ranges and subtle gradations
• Optical bonding between LCD and protective glass to reduce ambient reflections, minimize washout and prevent condensation
• 4K UHD (3840 x 2160) native resolution for faithful reproduction of endoscopic, microscope and robotic images
• Wide color gamut support (BT.2020 emulation) for accurate rendering of subtle tissue tones
• Picture-by-Picture (PbyP) and Picture-in-Picture (PinP) simultaneous display modes
• Front-facing LED‑illuminated control buttons (illuminate only during active operation to minimize distraction)

Connectivity & Video
The monitor provides versatile terminals supporting 4K UHD 60 Hz signals: DisplayPort, HDMI, BNC (12G‑SDI and 3G‑SDI). An SDVoE (SFP+) option is available on specific model variants for 4K/60 over Ethernet. Outputs include DisplayPort and BNC (12G‑SDI) for pass‑through and synchronized multi‑monitor setups.

Power & Integration
The EX3245H series supports AC 100–240 V (50/60 Hz) and offers flexible AC/DC configurations. The monitor provides DC outputs for powering peripheral devices (DC 5V 2A and DC 12V 2.5A on specified models). Model variations include options with or without an AC adapter and with or without SDVoE support.

Design & Usability
The design focuses on safe, hygienic, and continuous 24/7 use in the operating room: rounded, corner‑free frame; flat protective glass with anti‑fingerprint coating; easy‑to‑attach slide‑lock connector cover; auto brightness control driven by an ambient light sensor; mirroring and 180° rotation for flexible image orientation.

Durability & Safety
Front protective glass with 9H hardness and optical bonding improves impact resistance and prevents ingress of dust/moisture. The front panel degree of protection is IP45 (front), IP32 (rear). The monitor complies with multiple medical and safety standards to ensure reliability in clinical environments.

Additional notable points

• Auto Input Detection (fail‑safe): automatically switches to another connected input if a video signal is lost
• Supports independent display modes for dual‑screen viewing (each image can use an optimal display mode such as gamma 1.8–2.6 or DICOM Preset Mode)
• OSD languages include English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian and Portuguese

Caractéristiques / spécifications techniques

• Model: CuratOR EX3245H
• Model variations: EX3245H (SDVoE not supported, without AC adapter); EX3245H-A (SDVoE not supported, with AC adapter); EX3245H-S (SDVoE supported, without AC adapter); EX3245H-SA (SDVoE supported, with AC adapter)
• Panel type: IPS with protective glass and optical bonding
• Backlight: Mini LED with local dimming
• Size: 32.0" (81.3 cm)
• Native resolution: 3840 x 2160 (16:9)
• Viewable image size (H x V): 708 x 399 mm
• Pixel pitch (H x V): 0.185 x 0.185 mm
• Display colors: 10‑bit (SDI / DisplayPort / HDMI / SDVoE): up to 1.07 billion colors; 8‑bit: 16.77 million colors
• Viewing angles (H / V, typical): 178° / 178°
• Brightness (typical): 1900 cd/m2 (peak)
• Contrast ratio (typical): 1,000,000:1
• Response time (typical): 20 ms (black-white-black)
• Color gamut (typical): BT.2020 emulation
• Input terminals: EX3245H / EX3245H-A: DisplayPort (HDCP not supported), HDMI (HDCP 1.4), BNC (12G‑SDI), BNC (3G‑SDI); EX3245H‑S / EX3245H‑SA: SFP+ (SDVoE), DisplayPort, HDMI, BNC (12G‑SDI), BNC (3G‑SDI)
• Output terminals: DisplayPort, BNC (12G‑SDI)
• Digital scanning frequency (H / V): 18–136 kHz / 23–71 Hz
• Power requirements: AC 100–240 V, 50 / 60 Hz
• Power output (for peripherals): DC 5V 2A and DC 12V 2.5A (on applicable models)
• Simultaneous display: Picture by Picture (2 PbyP), Picture in Picture (PinP)
• Communication interfaces: EX3245H‑S / SA: Ethernet (SDVoE); EX3245H / A: RS‑232C, Ethernet
• Others: 180° rotation, horizontal mirroring
• Degree of protection: IP45 (front), IP32 (rear)
• Hole spacing (VESA): 100 x 100 mm, M4, depth 5.5–9.5 mm
• Certifications & standards: CE / UKCA (Medical Device), cTUVus, IEC/EN60601‑1, VCCI‑B, FCC‑B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC, BIS
• FDA status: Pending (Class II)
• Supplied accessories (varies by model/region): AC power cord, AC adapter (on A/SA variants), screws for VESA adapter x4, connector/cable cover, utility disk (instructions for use / installation manual) — accessory set depends on model variant
• Warranty: 3‑year warranty
