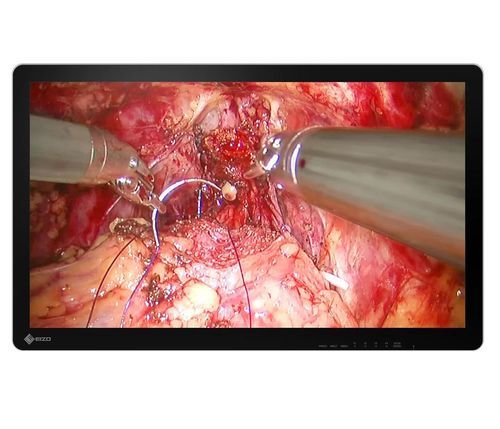

Surgical display EX3242-3D

operating roomendoscopy4K UHD

Product overview
This 32" surgical 3D monitor reproduces stereoscopic 4K UHD (3840 x 2160) images true to life for endoscopy, microsurgery and other high-precision procedures. It delivers brightness up to 850 cd/m², BT.2020 emulation for wide color gamut support and HDR compatibility (PQ and HLG).

Key features

• 4K 3D surgical display with stereoscopic 4K UHD (3840 x 2160) at up to 850 cd/m² for detailed depth perception.
• Accurate colour rendering (BT.2020 emulation) to support clinical colour differentiation.
• HDR support (PQ and HLG) to preserve detail in shadows and highlights from HDR-capable endoscope cameras.
• Optical bonding reduces reflections, prevents condensation inside the panel assembly and improves mechanical rigidity.
• Fully flat front safety glass with rounded corners for easy cleaning and hygienic handling (front protection IP45, device IP32).
• High protective glass hardness (>9H) and optical bonding to limit dust and moisture ingress.
• Lightweight, fogless 3D polarizing glasses included (battery-free, anti-fog coating compatible with surgical masks).

3D & image functions

• Supports multiple 3D signal formats: Side by Side, Line by Line, Top and Bottom, Simulcast (SIMUL) for 4K and Full HD (SIMUL Level-B).
• 3D-mode rotation and 180° mirroring to adapt image orientation to camera position and surgical staff sightlines.
• Parallax adjustment for fine horizontal 3D depth tuning to achieve a natural depth impression.
• Simultaneous display: Picture-by-Picture (PbyP) and Picture-in-Picture (PinP) with independent pane modes (gamma 1.8–2.6 or DICOM® Preset Mode).

Connectivity & signal handling
The monitor offers high-bandwidth medical inputs/outputs: BNC (12G-SDI) x2, DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), DVI-D (HDCP 1.4). 12G-SDI enables stable 4K transmission over long distances (approx. 30 m). Output terminals (DisplayPort, BNC 12G-SDI, DVI-D) support pass-through and downstream monitor connection for multi-monitor setups.
Auto Input Detection switches automatically to another connected input if the selected signal is lost, providing a fail-safe during procedures. The HDMI connector has a locking mechanism to secure cables for stable connections.

Design & OR suitability
Fully flat glass front and rounded corners facilitate cleaning and disinfection in the operating room. An attachable cable cover organizes cables to improve safety and hygiene. VESA mounting (100x100 and 200x200) supports flexible installation options.

Accessories supplied (may vary by country)

• AC power cord and AC adapter
• 3D fogless polarized glasses x3
• Screws for VESA adapter x8
• Cable cover
• Utility disk (PDF installation manual) and instructions for use

Certifications & standards
CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-A, FCC-A, CAN ICES-3(A), RCM, RoHS, China RoHS, WEEE, CCC, EAC, BIS. FDA classification: Class I.

Technical specifications

• Model: EX3242-3D
• Model Variations: EX3242-3D-WT: without stand
• Cabinet Color: White
• Panel Type: IPS with protective glass and optical bonding
• Backlight: LED
• Size: 81.3 cm / 32"
• Native Resolution: 3840 x 2160 (16:9)
• Viewable Image Size (H x V): 708 x 399 mm
• Pixel Pitch (H x V): 0.185 x 0.185 mm
• Display Colors: 10-bit (SDI / DisplayPort / HDMI) up to 1.07 billion; 8-bit: 16.77 million
• Viewing Angles (H / V, typical): 178° / 178°
• Brightness (typical): 850 cd/m²
• Contrast Ratio (typical): 1500:1
• Response Time (typical): 20 ms (black-white-black)
• Color Gamut (typical): BT.2020 emulation
• Input Terminals: DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), BNC (12G-SDI) x2, DVI-D (HDCP 1.4)
• Output Terminals: DisplayPort, BNC (12G-SDI), DVI-D
• Digital Scanning Frequency (H / V): 18 - 136 kHz / 23 - 71 Hz
• 3D Signal Format: 4K: Side by Side, Line by Line, Top and Bottom, SIMUL; Full HD: Side by Side, Line by Line, Top and Bottom, SIMUL (Level-B)
• Power Requirements: AC 100 - 240 V, 50 / 60 Hz
• Maximum Power Consumption: 205 W (maximum)
• Power Output: DC 5V, 2A
• Simultaneous Display: Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP)
• OSD Languages: English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese
• Communication Connector: RS-232C
• Other Features: 180° rotation, mirroring; parallax adjustment
• Degree of Protection: IP45 (front), IP32 (rear)
• Net Weight: 13.6 kg
• Hole Spacing (VESA): 200 x 200 mm, M6, depth 7-12 mm; 100 x 100 mm, M4, depth 7-11 mm
