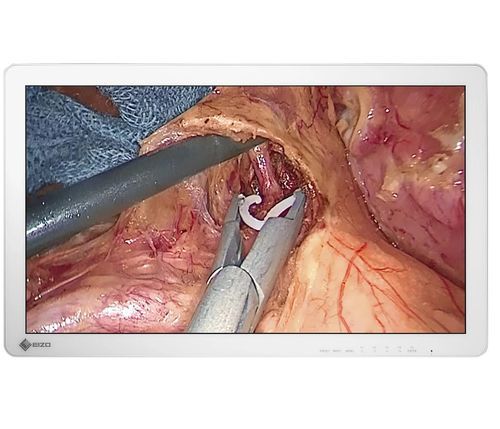

Endoscopy display CuratOR EX2721

operating roomsurgicalfull HD

Product overview
This 27-inch surgical monitor provides full HD imaging for endoscopy, microsurgery and other intraoperative visualisation needs. Designed for medical environments, it offers high brightness, wide viewing angles and a flat, easy-to-disinfect front surface.

Key features

• Bright LED backlight with typical brightness of 900 cd/m² for clear visualization of surgical details.
• Full HD native resolution (1920 x 1080) on an IPS panel for consistent color and wide viewing angles.
• Protective 9H hardness glass and flat front design; front protection rating IP45, rear IP32.
• Slim, fanless construction to reduce noise and minimize contamination points.
• Flexible image handling: 180° rotation and mirroring; independent rotation/mirroring per input.
• Simultaneous multi-signal display: Picture-by-Picture (PbyP) and Picture-in-Picture (PiP) with adjustable size and position.
• Independent display-mode adjustment per signal (gamma 1.8–2.6 or DICOM® Preset Mode) for multi-modality use.
• Multiple video I/O and external control via RS-232C and GPI.

Design & hygiene
Rounded corners and a fully flat protective front glass reduce contamination points in the operating room. Includes cable cover for clean cable routing and improved hygiene.

Panel / Display
Panel Type: IPS, protective glass
Backlight: LED
Size: 27.0" (68.6 cm)
Native Resolution: 1920 x 1080 (16:9)
Viewable Image Size (H x V): 598 x 336 mm
Pixel Pitch (H x V): 0.311 x 0.311 mm
Display Colors: 10-bit (SDI) - up to 1.07 billion; 8-bit - 16.77 million
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 900 cd/m²
Contrast Ratio (typical): 1000:1
Response Time (typical): 14 ms (black-white-black)
Color Gamut (typical): sRGB

Video signals / Input & Output
Input Terminals: BNC (3G-SDI), DVI-D x2 (HDCP 1.4), D-Sub 15 pin (mini), S-Video, BNC (Composite)
Output Terminals: BNC (3G-SDI), DVI-D, S-Video, BNC (Composite)
Digital Scanning Frequency (H / V): 15 - 75 kHz / 24 - 60 Hz
Analog Scanning Frequency (H / V): 15 - 80 kHz / 24 - 85 Hz
Sync Formats: Separate, Composite, Sync on green

Power
Power Requirements: AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption: 79 W
Power Output: DC 5V, 1A

Features & functions
Simultaneous display: Picture-by-Picture (2 PbyP), Picture-in-Picture (PiP)
OSD Languages: English, German, French, Italian, Spanish, Swedish, Japanese, Simplified Chinese, Traditional Chinese
Communication Connector: RS-232C, GPI
Rotation / Mirroring: 180° rotation and mirroring; independent rotation/mirroring when dual signals are shown

Environmental & protection
Degree of Protection: IP45 (front), IP32 (rear)

Physical
Net Weight (without stand): 8.5 kg
Hole Spacing (VESA): 100 x 100 mm, M4, depth 5 - 9 mm

Miscellaneous
Model Variations: EX2721-WT: without stand, white
Certifications & Standards: CE / UKCA (Medical Device), cTÜVus, IEC/EN60601-1, VCCI-A, FCC-A, CAN ICES (A), RCM, RoHS, China RoHS, WEEE, CCC, EAC, BIS
FDA Classification: Class I
Supplied Accessories: AC power cord, AC adapter, screws for VESA adapter x4, cable cover, Utility Disk (PDF installation manual), instructions for use

Specifications

• Model: CuratOR EX2721
• Brand: EIZO
• Display size: 27.0" (68.6 cm) FHD IPS
• Native resolution: 1920 x 1080 (16:9)
• Brightness (typical): 900 cd/m²
• Contrast ratio (typical): 1000:1
• Response time (typical): 14 ms
• Viewable image size: 598 x 336 mm
• Pixel pitch: 0.311 x 0.311 mm
• Display colors: up to 10-bit (SDI) / 8-bit (16.77M)
• Viewing angles: 178° / 178°
• Panel type: IPS with protective 9H hardness glass
• Protection: Front IP45 / Rear IP32
• I/O: 3G-SDI (BNC), DVI-D x2 (HDCP 1.4), D-Sub 15, S-Video, Composite (BNC); outputs: 3G-SDI, DVI-D, S-Video, Composite
• Simultaneous display modes: PbyP, PiP; independent image adjustments and rotation/mirroring per signal
• Control: RS-232C, GPI
• Power: AC 100–240 V 50/60 Hz; max consumption 79 W; DC output 5 V / 1 A
• Net weight (without stand): 8.5 kg
• VESA: 100 x 100 mm (M4)
