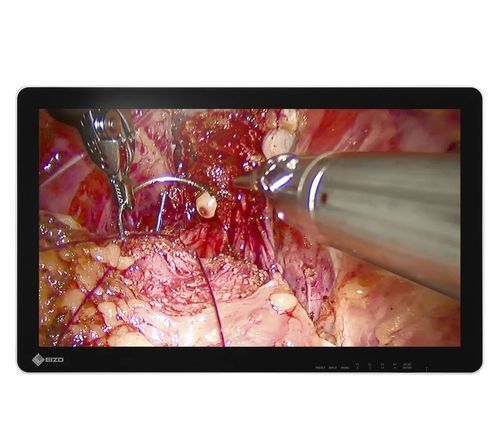

Full HD OR video system EX2620-3D

1920 x 1080

Overview
26" 3D operating theatre monitor in widescreen format for faithful stereoscopic image reproduction. Designed for endoscopy, microsurgery and robotic-assisted procedures. This model is discontinued but may remain available from existing stock.

Key Features

• 3D surgical display: 3D-capable IPS panel with LED backlight, typical brightness 580 cd/m² and contrast ratio 1400:1 for Full HD stereoscopic imaging.
• Wide viewing angles: 178° horizontal / 178° vertical (2D mode) to minimise contrast shift during multi-angle viewing in the OR.
• Fully flat protective glass with optical bonding: reduces reflections, prevents condensation and ingress of dust/moisture for improved visibility and durability.
• Fanless, slim design: fanless thermal concept improves hygiene and simplifies disinfection; integrated cable cover for safe cable routing.
• Bright, flicker-free 3D: polarized 3D system with battery-free, lightweight fogless polarized glasses supplied.
• Flexible 3D and 2D formats: supports Full HD Side-by-Side, Line-by-Line, Top-and-Bottom and SIMUL (Level-B); 2D PbyP and PiP for simultaneous source viewing.
• Multiple I/O and control: variety of digital/analog inputs and loop-through outputs; external control via GPI and RS-232C for integration with surgical equipment.
• Standard mounting and compliance: VESA-compatible mounting and multiple medical/safety/EMC certifications for clinical environments.

Accessories (supplied, may vary by country)

• AC power cord and AC adapter
• Screws for VESA adapter x4
• 3D fogless polarized glasses x3
• Cable cover
• Utility Disk (PDF installation manual) and instructions for use

Notes

• Intended for stereoscopic imaging workflows: endoscopy, microsurgery and robotic systems.
• Fanless construction reduces airborne contamination risk and facilitates OR cleaning and disinfection procedures.

Technical specifications

• Model: EX2620-3D
• Model variation: EX2620-3D-WT (without stand)
• Cabinet colour: Black (front), White (rear)
• Certifications: CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-A, FCC-A, CAN ICES-3(A), RCM, RoHS, WEEE, EAC, BIS; FDA Class I
• Panel type: IPS with protective glass and optical bonding
• Backlight: LED
• Size: 66.1 cm / 26.0"
• Native resolution: 1920 x 1080 (16:9)
• Viewable image size (H x V): 576 x 324 mm
• Pixel pitch (H x V): 0.300 x 0.300 mm
• Display colours: 10-bit (SDI) up to 1.07 billion; 8-bit 16.77 million
• Viewing angles (typical): 178° / 178° (2D mode)
• Brightness (typical): 580 cd/m²
• Contrast ratio (typical): 1400:1
• Response time (typical): 18 ms (G-to-G black-white-black)
• Color gamut (typical): sRGB
• Video input terminals: BNC (3G-SDI) x2, DVI-D x2 (HDCP 1.4), D-Sub 15 pin (mini), BNC (RGB C-Sync/Component), S-Video, BNC (Composite)
• Video output (loop-through): BNC (3G-SDI) x2, DVI-D, BNC (RGB C-Sync/Component), S-Video, BNC (Composite)
• 3D signal formats: Full HD Side-by-Side, Line-by-Line, Top-and-Bottom, SIMUL (Level-B)
• Display modes: Picture by Picture (2 PbyP), Picture in Picture (PiP); 180° rotation and mirroring
• Power requirements: AC 100–240 V, 50/60 Hz; max power consumption 95 W
• Communication interface: RS-232C; external control via GPI
• Degree of protection: IP45 (front), IP32 (rear)
• Net weight: 8.5 kg
• VESA hole spacing: 100 x 100 mm, M4, depth 5–9 mm
