Endoscopy display EX2742

operating roomsurgical4K

Product overview

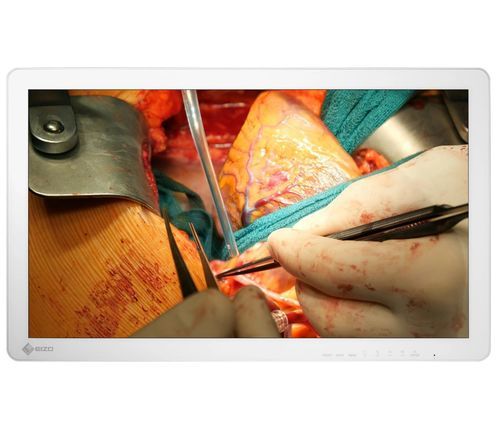

The CuratOR EX2742 is a 27" surgical monitor providing 4K UHD (3840 × 2160) resolution for endoscopy, microsurgery and other high-precision procedures. The IPS panel with optical bonding and protective glass delivers high brightness, wide color support and robust hygiene features required in operating rooms.

Key features

• 4K UHD (3840 × 2160) resolution for detailed surgical imaging
• BT.2020 emulation for accurate colour differentiation
• HDR support (PQ and HLG) to preserve detail in both bright and dark areas
• Brightness: 820 cd/m² (typical) and contrast ratio 2000:1 (typical)
• IPS panel with protective glass and optical bonding to reduce reflections and prevent condensation
• 10-bit color support (SDI / DisplayPort / HDMI) — up to 1.07 billion colors; 8-bit standard mode
• Wide viewing angles (178°/178°) for consistent image quality across the OR
• Multiple I/O: DisplayPort, HDMI, 12G-SDI, 3G-SDI, DVI-D with 4K @60Hz capability
• Simultaneous display: Picture-in-Picture (PinP) and Picture-by-Picture (PbyP) with independent presets per image (gamma, DICOM, etc.)
• Secure locking connector to prevent accidental HDMI disconnection
• Front protective glass, rounded corner-free design for easy cleaning; IP45 front ingress protection
• RS-232C for integration and external device control
• Auto Input Detection for fail-safe switching on signal loss
• 3-year warranty

Included accessories (may vary by country)

• AC power cord
• AC adapter
• Screws for VESA adapter × 4
• Cable cover
• Utility Disk (user instructions, installation manual)

Technical specifications

• Model: CuratOR EX2742
• Variant: EX2742-WT (without stand, white)
• Panel type: IPS with protective glass, optical bonding
• Backlight: LED
• Size: 27" (68.4 cm)
• Native resolution: 3840 × 2160 (16:9)
• Viewable image size (H × V): 596.2 × 335.3 mm
• Pixel pitch: 0.155 × 0.155 mm
• Color depth: 10-bit (SDI/DP/HDMI) up to 1.07 billion; 8-bit standard
• Viewing angles (H/V): 178° / 178°
• Brightness (typical): 820 cd/m²
• Contrast ratio (typical): 2000:1
• Response time (typical): 22 ms (black-white-black)
• Color gamut: BT.2020 emulation
• Inputs: DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), BNC (12G-SDI), BNC (3G-SDI), DVI-D
• Outputs: DisplayPort, BNC (12G-SDI), DVI-D
• Scan frequency (H/V): 18 - 136 kHz / 23 - 71 Hz
• Power: AC 100 - 240 V, 50/60 Hz; max consumption 126 W; DC output 5 V, 2 A
• Simultaneous display: PbyP (2), PinP
• OSD languages include English, German, French, Spanish, Italian, Japanese, Simplified Chinese, Russian, Portuguese
• Communication: RS-232C
• Rotation/mirroring: 180° rotation and mirroring supported
• Protection rating: IP45 (front), IP32 (rear)
• Net weight (without stand): 8.1 kg
• VESA: 100 × 100 mm, M4, depth 5–9 mm
• Certifications: CE / UKCA (Medical Device), cTUVus, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC, BIS; FDA: pending (Class II)
