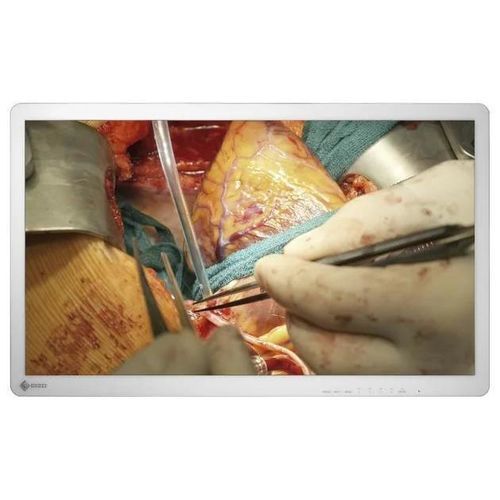

Surgical display CuratOR EX3242

operating roomendoscopy4K UHD

Overview
32" surgical monitor with 4K UHD (3840 x 2160) resolution, high-brightness LED backlight and optical bonding, designed for endoscopy, microscopy and other precision surgical procedures.

Key Highlights

• 4K UHD (3840 x 2160) native resolution for ultra high-definition endoscope and microscope images
• High brightness with energy-efficient LED backlight (typical 850 cd/m²)
• Wide color gamut with BT.2020 emulation for accurate tone differentiation
• HDR support (PQ and HLG) for realistic high-dynamic-range rendering
• Optical bonding and protective glass to reduce reflections and prevent condensation

Product Features (details)
4K UHD Resolution and High Brightness
Native 3840 x 2160 (16:9) panel reproduces ultra high-definition surgical images. Energy-efficient LED backlight provides a typical brightness of 850 cd/m² to ensure clear visualization of fine details.

Wide Color Gamut for Tone Differentiation
BT.2020 emulation allows subtle differences in tones—particularly reds and yellows—captured by BT.2020-capable cameras to be differentiated on-screen.

HDR Compatibility
Supports Perceptual Quantization (PQ) and Hybrid Log-Gamma (HLG) to display HDR signals with preserved shadow and highlight detail for more natural image reproduction.

Optical Bonding, Durability and Reduced Reflections
Fully flat protective glass (hardness >9H) combined with optical bonding fills the gap between LCD and external glass, increasing mechanical strength, preventing dust and moisture ingress, minimizing reflections and reducing condensation risk.

Safe and Hygienic Design
Fully flat front with rounded corners and a durable protective screen suited for continuous operation in sterile environments. Front: IP45 protection (whole monitor IP32). Cable cover for neat cable routing to improve safety and hygiene.

Streamlined Connectivity and Signal Handling
Supports DisplayPort, HDMI and BNC (12G-SDI) inputs to accept up to 4K UHD at 60 fps via a single cable. 12G-SDI enables stable long-distance transmission (up to 30 m). Output terminals (DisplayPort, 12G-SDI, DVI-D) allow passthrough to additional monitors.

Advanced Display Functions

• Picture-by-Picture (PbyP) and Picture-in-Picture (PinP) to display multiple signals concurrently
• Independent image adjustment per source (separate gamma or DICOM® preset mode)
• 180° rotation and mirroring to match camera orientation
• Auto Input Detection to switch automatically if the selected input signal is lost
• Locking mechanism for HDMI connectors to ensure stable connections

Certifications & Standards
CE / UKCA (Medical Device), cTÜVus, IEC/EN60601-1, VCCI-A, FCC-A, CAN ICES (A), RCM, RoHS, China RoHS, WEEE, CCC, EAC, BIS. FDA: Class I.

Accessories (supplied)
AC power cord, AC adapter, screws for VESA adapter ×8, cable cover, Utility Disk (PDF installation manual), instructions for use (contents may vary by country).

Technical specifications

• Model / Commercial name: CuratOR EX3242
• Model variations: EX3242-WT (without stand, white)
• Panel type: IPS with protective glass and optical bonding
• Backlight: LED
• Size: 32.0" (81.3 cm)
• Native resolution: 3840 x 2160 (16:9)
• Viewable image size (H x V): 708 x 399 mm
• Pixel pitch (H x V): 0.185 x 0.185 mm
• Display colors: 10-bit (SDI / DisplayPort / HDMI) up to 1.07 billion; 8-bit: 16.77 million
• Viewing angles (typical): 178° / 178°
• Brightness (typical): 850 cd/m²
• Contrast ratio (typical): 1800:1
• Response time (typical): 20 ms (black-white-black)
• Color gamut (typical): BT.2020 emulation
• Input terminals: DisplayPort (HDCP 1.3), HDMI (HDCP 2.2/1.4), BNC (12G-SDI), BNC (3G-SDI), DVI-D (HDCP 1.4)
• Output terminals: DisplayPort, BNC (12G-SDI), DVI-D
• Digital scanning frequency (H / V): 18 - 136 kHz / 23 - 71 Hz
• Simultaneous display: Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP)
• OSD languages: English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese
• Communication connector: RS-232C
• Power requirements: AC 100 - 240 V, 50 / 60 Hz
• Maximum power consumption: 199 W (maximum)
• Power output: DC 5 V, 2 A
• Degree of protection: IP45 (front), IP32 (rear)
• Net weight: 13.2 kg
• Hole spacing (VESA): 200 x 200 mm (M6, depth 7 - 12 mm) and 100 x 100 mm (M4, depth 7 - 11 mm)
