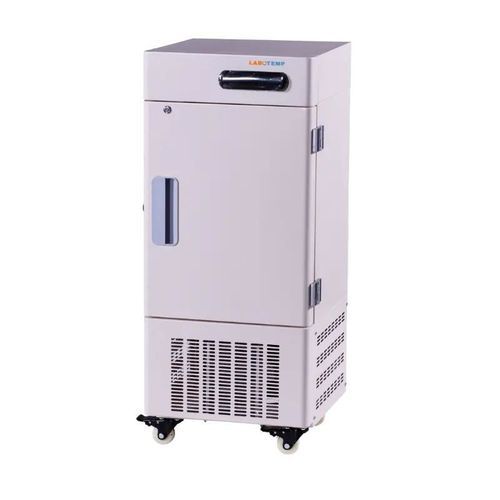

Vaccine freezer ULF-07

laboratoryfor enzymesfor clinical laboratories

Product overview
Labotemp Small Ultra Low Freezer ULF-07 is a precision upright ultra-low temperature (ULT) freezer providing reliable −40°C to −86°C storage in a compact 28 L footprint. It pairs a Secop compressor with a direct HFC refrigeration circuit, 150 mm rigid polyurethane insulation and copper condenser/evaporator for fast, stable cooling. Microprocessor control with 0.1°C accuracy and LED display enables precise monitoring. The unit includes a 304 stainless steel interior, powder-coated cold-rolled steel exterior with anti-bacterial finish, lockable outer door, one inner door, one shelf and four casters for mobility. Typical power consumption is 6.1 kWh/24h, making it suitable for vaccines, biological samples, enzymes and cell storage.

Key benefits

• Wide ultra-low range: −40°C to −86°C for secure long-term sample preservation.
• Accurate control: Microprocessor regulation with 0.1°C resolution and LED readout.
• Laboratory-grade construction: 304 stainless steel interior and anti-bacterial powder-coated exterior.
• Energy-conscious operation: 6.1 kWh/24h consumption with Secop compressor and direct HFC cooling.

Features

• 150 mm rigid polyurethane insulation for enhanced thermal stability.
• Audible and visual alarms for high/low temperature, power failure and sensor faults.
• Direct cooling system using an HFC refrigerant mixture and Secop compressor.
• Copper condenser and evaporator for efficient heat transfer.
• Unibody design with mono-assembly polyurethane foaming for uniform temperature distribution.
• Lockable outer door, one inner door, one shelf and four casters for access and transport.
• Microprocessor control with LED display; temperature accuracy 0.1°C.

Applications

• Storage of vaccines, biological samples, enzymes and cell lines in research laboratories and clinical settings.
• Biotechnology, medical research and industrial ultra-low temperature preservation.

Technical specifications

• Model: ULF-07
• Capacity: 28 L
• Temperature range: −40 ~ −86°C
• Compressor: Secop
• Type: Vertical (upright)
• Power supply: AC110V/220V±10%, 50/60Hz
• Rated power: 400 W
• Power consumption: 6.1 kWh/24h
• External dimensions (W×D×H): 470 × 490 × 1120 mm
• Internal dimensions (W×D×H): 270 × 265 × 400 mm
• Temperature accuracy: 0.1°C
• Control system: Microprocessor control, LED display
• Alarm: Audible and visual
• Refrigeration type: Direct refrigeration
• Refrigerant: HFC mixture
• Condenser & evaporator: Copper
• Internal material: 304 stainless steel
• External material: Cold-rolled steel with anti-bacterial powder coating
• Door: Lockable outer door
• Casters: 4
• Inner door: 1
• Shelf: 1 pcs
• Balance port: 1, φ18 mm
• Package size (W×D×H): 550 × 590 × 1270 mm
• Net weight: 66 kg
• Gross weight: 88 kg
