Vaccine freezer ULF-10

for hospitalslaboratoryfor biopharmaceutical applications

Overview

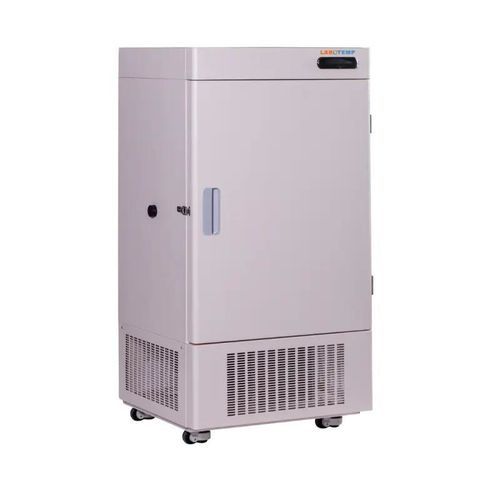

Labotemp Upright Ultra Low Temperature Freezer ULF-10 is a vertical storage unit designed for laboratories, hospitals and pharmaceutical facilities. It provides 158 L capacity with an adjustable ultra-low temperature range from −60°C to −86°C and 0.1°C control accuracy via microprocessor control and LED display. Equipped with a high-efficiency Secop compressor, HFC mixture refrigerant and copper condenser/evaporator, the ULF-10 delivers uniform cooling with optimized energy consumption (480 W). Audible and visual alarms for temperature, power and system faults and optional data recording and secure-access features support safe long-term storage of vaccines, biological samples and temperature-sensitive reagents.

Key benefits

• Wide ultra-low range: adjustable −60°C to −86°C to cover common ultra-low storage needs.
• Precision control: microprocessor system with 0.1°C accuracy and LED display for reliable monitoring.
• Advanced safety: multiple audible and visual alarms; optional USB data logger, password/fingerprint lock and remote SMS alarm.
• Reliable refrigeration: Secop compressor with HFC mixture refrigerant and copper condenser/evaporator for consistent cooling.
• Durable construction: 304 stainless steel interior, cold-rolled steel exterior with antibacterial powder coating and 120 mm insulation.

Features

• ISO/CE certified.
• Vertical design, 158 L usable volume.
• Adjustable temperature range −60°C to −86°C with 0.1°C accuracy.
• Microprocessor control and LED display.
• Audible and visual alarms for temperature, power and system faults.
• Secop compressor with HFC mixture refrigerant; copper condenser and evaporator.
• 120 mm insulation; 304 stainless steel interior.

Applications

• Storage of biological samples, vaccines and sensitive reagents at ultra-low temperatures.
• Use in medical, pharmaceutical and research laboratories.
• Long-term preservation of temperature-sensitive materials.

Technical specifications

• Model: ULF-10
• Capacity: 158 L
• Temperature range: −60 ~ −86°C
• Temperature accuracy: 0.1°C
• Control system: Microprocessor control, LED display
• Compressor: Secop
• Power supply: AC110V/220V ±10%, 50/60Hz
• Power consumption: 480 W
• Type: Vertical
• Refrigeration type: Direct refrigeration
• Refrigerant: HFC mixture refrigerant
• Condenser & evaporator: Copper
• Internal material: 304 stainless steel
• External material: Cold-rolled steel with antibacterial powder coating
• Door: Lockable
• Insulation thickness: 120 mm
• Casters: 4
• Inner door: 3
• Shelves (racks): 2 pcs
• Temp. test port: 1, φ30 mm
• Optional: USB interface & temperature recorder, 7
