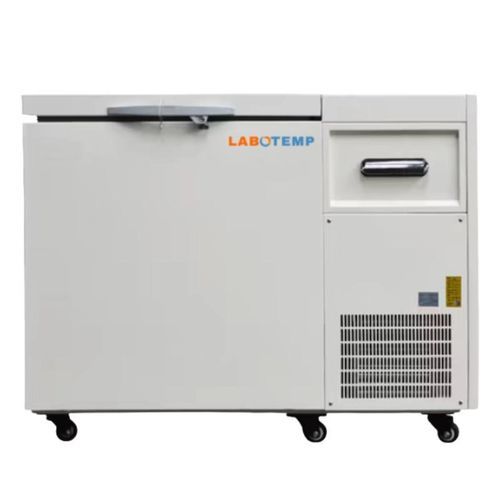

Pharmacy freezer ULF-12

for vaccinesfor hospitalsfor blood plasma

Product overview
Labotemp Ultra Low Chest Temperature Freezer ULF-12 is a high-capacity laboratory-grade ULT freezer designed for adjustable -60°C to -86°C storage and dependable long-term sample preservation. It features microprocessor control with 0.1°C accuracy and an LED display to maintain required ultra-low temperatures for vaccines, plasma, enzymes and long-term biosamples. Built for efficiency and compliance, the ULF-12 combines a SECOP compressor, HFC refrigerant and copper condenser with 150 mm rigid polyurethane insulation for steady ultra-low deep freezer performance (550 W input, ~8.8 kWh/24h). The unit includes a 304 stainless-steel interior, anti-bacterial coated exterior, lockable lid, KELD thermostat, balance port and six casters for hygiene, mobility and secure access. Suitable for hospitals, biobanks and research labs seeking energy-efficient, traceable ultra-cold storage solutions.

Features

• LED digital display and microprocessor control (0.1°C accuracy)
• Horizontal chest freezer design with 258 L capacity
• Adjustable temperature range -60°C to -86°C
• Multiple alarms: temperature, power failure, door ajar and system errors (audible and visual)
• SECOP compressor with direct refrigeration using HFC mixture refrigerant
• Copper condenser and evaporator
• 304 stainless steel interior and cold-rolled steel exterior with anti-bacteria powder coating
• 150 mm rigid polyurethane insulation for superior temperature retention and energy efficiency
• Lockable door and six casters for secure access and mobility

Applications

• Biological research laboratories
• Hospitals and clinical storage
• Pharmaceutical facilities and biobanks
• Long-term storage of vaccines, enzymes, plasma and biological samples at ultra-low temperatures

Technical specifications

• Model: ULF-12
• Capacity: 258L
• Temperature Range: -60 ~ -86°C, adjustable
• Compressor: SECOP
• Power Supply: AC110V/220V ±10%, 50/60Hz
• Input Power (W): 550 W
• Power Consumption: 8.8 kWh / 24h
• Package Size: 1580 × 965 × 1260 mm
• Type: Horizontal type (chest/deep freezer)
• External Size: 1510 × 895 × 1095 mm
• Internal Size: 780 × 500 × 660 mm
• Temperature Accuracy: 0.1°C
• Control System: Microprocessor control, LED Display
• Alarm: Audible and Visual Alarm
• Refrigeration Type: Direct refrigeration
• Refrigerant: HFC mixture refrigerant
• Condenser & Evaporator: Made of copper
• Structure: Unibody design & mono-assembly foaming (rigid polyurethane insulation)
• Internal Material: 304 stainless steel
• External Material: Cold-rolled steel with anti-bacteria powder coating
• Door: Lockable door
• Casters: 6
• Thermostat Brand: KELD
• Insulation Thickness: 150 mm
• Balance Port: 1, φ18 mm
• Net Weight: 162 kg
• Gross Weight: 215 kg
