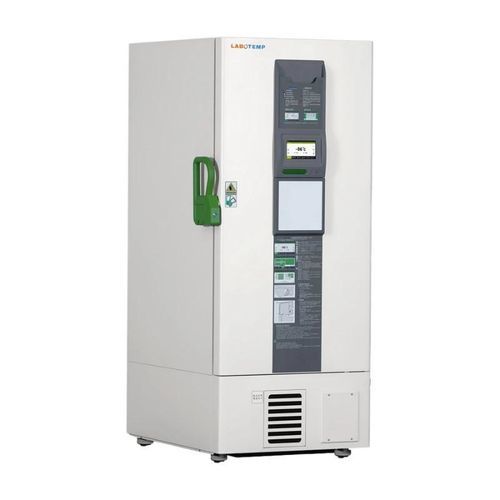

ULT freezer ULF-27

for vaccineslaboratoryfor biobanks

Product overview
Labotemp ULF-27 is a vertical ultra‑low temperature (ULT) freezer designed for pharmaceutical, clinical and research laboratories. With 408 L capacity it provides rapid pull‑down and stable control from −40°C to −86°C with 0.1°C regulation accuracy, suitable for vaccines, viral samples, tissues, reagents and biobank storage.

Key benefits

• Assured system reliability: dual SECOP compressors with automatic failover and optional LN₂/CO₂ emergency backup; 72‑hour battery‑backed power‑failure alarm.
• Energy‑efficient operation: cascade refrigeration with eco‑friendly refrigerants and advanced insulation to reduce power consumption (approx. 13.8 kWh/24h).
• Certified precision control: stable −86°C performance with 7" touch‑screen microprocessor controller, PTC sensors, USB/RS485 connectivity and remote alarm port.

Features

• Temperature range −40°C to −86°C with 0.1°C control accuracy.
• 408 L / 14.41 cu. ft. storage capacity.
• Dual SECOP compressors (automatic failover) capable of maintaining −70°C on a single compressor.
• Cascade refrigeration using eco‑friendly refrigerants (references: R290/R170; spec table lists R4001 / 300 g).
• Advanced insulation: 100 mm PURF plus Vacuum Insulation Panel (VIP).
• 7" microprocessor touch‑screen controller with PTC sensors; USB data download port; RS485 port; remote alarm port.
• Comprehensive alarms: high/low temperature, power failure (72 h backup), sensor/controller error, door ajar, abnormal voltage, abnormal ambient temperature, battery error, condenser/filter cleaning alarm.
• Refrigeration / defrost type: Direct cooling / Manual.
• Exterior: coated steel; Interior: stainless steel; door lock included; castors for mobility.
• Certifications: ISO 13485 and CE compliant.

Applications

• Pharmaceutical, clinical, biotechnology and research laboratories requiring secure ultra‑low temperature storage.
• Long‑term preservation of vaccines, viral samples, biological specimens, reagents, tissues and biobank materials at −86°C.

Technical specifications

• Model: ULF-27
• Temperature range: −40°C to −86°C
• Ambient temperature: 10°C to 32°C
• Capacity: 408 L / 14.41 cu. ft.
• Noise level: 50 dB
• Cold rack max. loading capacity: 254 (4 racks × 8 drawers)
• Controller / display: Microprocessor with 7" touch screen
• Sensor: PTC
• Voltage / Frequency: 220V ±10%, 50Hz
• Power: 1350 W
• Electric current: 11 A
• Power consumption: 13.8 kWh/24h
• Alarms: high/low temp, power failure (72 h backup), sensor error, controller error, door ajar, abnormal voltage, abnormal ambient temp, battery error, condenser/filter cleaning alarm
• Refrigeration / defrost: Direct cooling / Manual
• Compressor (brand / pcs): SECOP / 2
• Refrigerant / weight: R4001 / 300 g (page references R290/R170 cascade)
• External / internal doors: 1 foamed solid outer door / 2 foamed solid inner doors
• Adjustable shelves: 3
• Exterior / interior material: Coated steel / Stainless steel
• Insulation: PURF (100 mm) and Vacuum Insulation Panel (VIP)
• Door lock: Yes
• Test holes: 2
• Castors: 4
• USB data port: Yes
• Remote alarm port: Yes
• RS485 port: Yes
• Interior dimensions (W × D × H): 606 × 575 × 1180 mm
• Exterior dimensions (W × D × H): 891 × 992 × 1945 mm
• Packing dimensions (W × D × H): 960 × 1030 × 2120 mm
• Net / Gross weight: 236 / 278 kg
• Packaging: Plywood box with pallet
