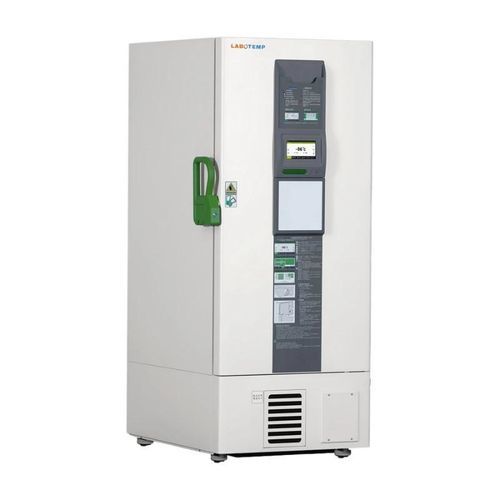

Vaccine freezer ULF-28

laboratoryfor biobanksfor clinical laboratories

Description
Labotemp -86°C Ultra Low Freezer ULF-28 is a high-capacity laboratory ULT freezer for secure long-term preservation of biological materials at ultra-low temperatures from -40°C to -86°C. Designed for clinical, biobanking and research environments, it provides stable and uniform cooling via a dual cascade refrigeration system with automatic backup to maintain critical samples in case of primary system failure.

Design and control
The ULF-28 features a microprocessor control with a 7-inch touchscreen for precise monitoring (±0.1°C). The cabinet combines VIP insulation and PURF to optimize thermal stability and energy use. Stainless steel interior and a double-insulated door improve hygiene and reduce temperature fluctuation. Safety systems include multi-alarms, door lock, 72-hour controller battery backup and power-failure protection.

Why choose Labotemp ULF-28?

• Dual cooling cascade with automatic backup to protect samples
• Precise ultra-low performance down to -86°C with ±0.1°C control
• Comprehensive safety and monitoring features suitable for clinical and research use

Features

• Dual independent cascade cooling with automatic backup activation
• Ultra-low temperature capability to -86°C
• 588 L storage capacity with organized rack system
• Microprocessor-based temperature control (±0.1°C)
• 7-inch touchscreen for real-time monitoring
• Dual SECOP compressors for continuous operation
• Multi-layer insulation (PURF 100 mm + VIP)
• Comprehensive alarm suite (temp, power, sensor, door, voltage, condenser)
• 72-hour battery backup for controller and data protection
• Stainless steel interior and coated steel exterior
• Double insulated door design and test ports
• Direct cooling with efficient power consumption
• Heavy-duty casters for mobility

Applications

• Long-term storage of vaccines, biological samples and reagents at -86°C
• Biobanking and clinical research with alarm-monitored, backup-protected storage
• Pharmaceutical QC and GMP environments for stability studies and sample retention
• Molecular biology storage of DNA, RNA, enzymes and cell samples
• Academic and industrial laboratories requiring validated ULT preservation

Standard Accessories

• USB data download port
• Remote alarm port
• RS485 communication port

Optional Accessories

• Temperature datalogger
• Temperature printer
• Chart recorder
• Protective gloves
• LN2/CO2 backup system

Technical specifications
Capacity : 588 L
Temperature range : -40°C to -86°C
Ambient temperature : 10 – 32°C
Sample capacity : 25,500 vials (0.5–2 ml), 400 boxes, 16 racks
Power supply : 220V ±10%, 50 Hz
Power consumption : 1500 W (16.23 kWh/24h)
Electric current : 10.47 A
Controller / Display : Microprocessor / 7-inch touchscreen
Sensor : PTC
Temperature accuracy : ±0.1°C
Refrigeration type : Direct cooling / Manual defrost
Cooling system : Cascade refrigeration system
Compressor : SECOP × 2
Refrigerant / Charge : R4001 / 320 g
Interior material : Stainless steel
Exterior material : Coated steel / Stainless steel
Insulation : PURF (100 mm) + Vacuum Insulation Panel (VIP)
Door type : Foamed solid door × 1 or × 2
Door lock : Yes
Test ports : 2
Casters : 4
Cold rack max loading : 255D rack / 16
2' cold rack max loading : 400
Alarms : High/low temp, power failure (72h backup), sensor error, controller error, door ajar, abnormal voltage, ambient temp, battery error, condenser/filter maintenance
Interior dimensions (W×D×H) : 606 × 738 × 1310 mm
Exterior dimensions (W×D×H) : 891 × 1155 × 1995 mm
Packing dimensions (W×D×H) : 975 × 1185 × 2200 mm
Net / Gross weight : 335 / 395 kg
Packaging : Plywood box with pallet
Temperature stability : ±5°C
