ULT freezer ULF-01

for vaccineslaboratoryfor sample storage

Overview

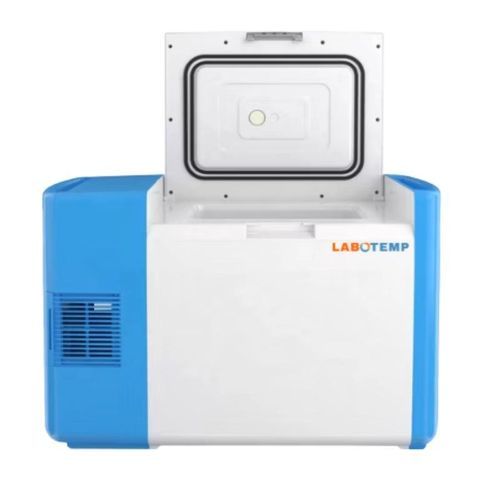

Labotemp ULF-01 is a portable ultra‑low temperature (ULT) freezer engineered for mobile clinics, field laboratories, research teams and emergency cold‑chain operations. Compact and transportable, it reliably stores temperature‑sensitive vaccines, biological samples and pharmaceuticals at −60°C to −80°C. DC 12V/24V compatibility and a lightweight top‑open design make it suitable for vehicle‑mounted and remote deployments.

Design & core components
The ULF-01 integrates a SECOP compressor, EBM condenser fan and a fluorine‑free refrigerant to ensure uniform, efficient cooling. Electronic temperature control with digital display and a PTC probe provide precise monitoring. The unit features a 20 L capacity, 100 mm insulation, 304 stainless steel interior and PE exterior for hygiene and durability.

Key benefits

• Field‑ready portability: DC 12V/24V operation and compact footprint for transport and vehicle use.
• Precise ultra‑low control: Maintains −60°C to −80°C with stable electronic regulation and digital readout.
• Sample protection: Audible/visual alarms, robust insulation and stainless interior to secure sensitive loads.

Features

• Portable ULT freezer, top‑open box design
• SECOP compressor and EBM condenser fan
• DC 12V / 24V power input for mobile applications
• Fluorine‑free eco refrigerant
• 304 stainless steel interior; PE exterior
• Audio‑visual alarm and digital temperature display

Applications

• Transport and short‑term storage of vaccines, medicines and biological samples in clinics and field operations
• Research and pharmaceutical sample preservation and ultra‑low transport

Accessories

• Standard: manual, protective gloves, snow shovel, power cord
• Optional: touch screen controller

Specifications
Model: ULF-01
Capacity: 20 L
Internal temperature: −60°C to −80°C (adjustable)
Voltage: DC 12V / 24V
Compressor: SECOP
Type: Box (top open)
Alarm: Audible and visual
Input power: 270 W
Power consumption: 2.2 kWh
Climate class: N type
Refrigerant: Fluorine‑free environmental refrigerant
Refrigeration system: Single compressor
Temperature control: Electronic
Temperature display: Digital
Probe: PTC
Condenser fan: EBM fan
Exterior material: PE
Interior material: Stainless steel 304
Door type: Top open
Insulation thickness: 100 mm
External dimensions: 780 × 410 × 515 mm
Internal dimensions: 327 × 220 × 305 mm
Package size: 860 × 490 × 680 mm
Gross weight: 32 kg
Net weight: 21 kg

Technical specifications

• Model: ULF-01
• Capacity: 20 L
• Temperature range: −60°C to −80°C (adjustable)
• Power supply: DC 12V / 24V
• Compressor: SECOP
• Refrigerant: Fluorine‑free
• Cooling system: Single compressor
• Temperature control: Electronic with digital display
• Probe: PTC
• Condenser fan: EBM
• Interior: Stainless steel 304
• Exterior: PE
• Door: Top open
• Insulation: 100 mm
• External dimensions: 780 × 410 × 515 mm
• Net weight: 21 kg
• Gross weight: 32 kg
