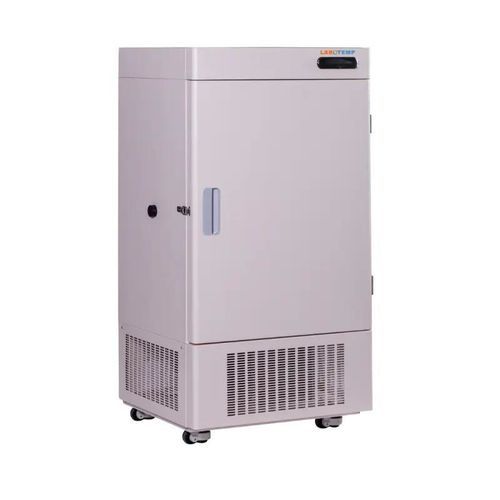

Vaccine freezer ULF-14

for hospitalsfor laboratoryfor biobanks

Product summary
Labotemp Ultra Low Temperature Freezer ULF-14 is a high-capacity vertical ultra-low temperature freezer designed for reliable −40°C to −86°C storage in laboratories, hospitals, biobanks and research centers. With 358 L usable volume, microprocessor control, LED display and 0.1°C accuracy, it maintains precise storage conditions for vaccines, biological samples, enzymes and pharmaceuticals. The ULF-14 uses a SECOP compressor, HFC refrigerant and copper condenser/evaporator for efficient direct refrigeration, combined with 150 mm rigid polyurethane insulation and a unibody mono-assembly foaming structure for long-term thermal performance. Interior is 304 stainless steel and the exterior is cold-rolled steel with anti-bacterial powder coating. Lockable door, balance hole, four casters and audible/visual alarms add security, mobility and protection. Energy input is approximately 510 W with a power consumption of about 9.6 kWh/24h.

Key features

• Precise control: 0.1°C accuracy with microprocessor monitoring and LED display.
• 358 L vertical capacity; temperature adjustable from −40°C to −86°C.
• SECOP compressor with HFC mixture refrigerant for efficient cooling.
• Direct refrigeration with copper condenser and evaporator for enhanced heat transfer.
• Hygienic and durable construction: 304 stainless steel interior; cold-rolled steel exterior with anti-bacterial powder coating.
• High-performance insulation: 150 mm rigid polyurethane (unibody design, mono-assembly foaming).
• Security and safety: lockable door, audible & visual alarms (high/low temperature, power failure, door ajar), balance hole and 4 casters.

Applications

• Suitable for laboratories, hospitals, biobanks and research centers requiring reliable ultra-low temperature storage for vaccines, biological samples, enzymes and pharmaceuticals.

Optional accessories

• USB
• Remote temperature logger

Technical specifications

• Model: ULF-14
• Capacity: 358 L
• Temperature range: −40 ~ −86°C
• Temperature accuracy: 0.1°C
• Compressor: Secop
• Power supply: AC110V/220V±10%, 50/60Hz
• Consumption: 510 W
• Power consumption: 9.6 kWh/24h
• Package size: 1890 × 975 × 1240 mm
• Type: Vertical
• External size: 1810 × 895 × 1090 mm
• Internal size: 1080 × 500 × 660 mm
• Control system: Microprocessor control, LED display
• Alarm: Audible and visual alarm
• Refrigeration type: Direct refrigeration
• Refrigerant: HFC mixture refrigerant
• Condenser & evaporator: Copper
• Structure: Unibody design & mono-assembly foaming (rigid polyurethane insulation)
• Internal material: 304 stainless steel
• External material: Cold-rolled steel with anti-bacterial powder coating
• Door: Lockable
• Casters: 4 casters
• Insulation thickness: 150 mm
• Balance hole: 1, φ18 mm
• Net weight: 184 kg
• Packing size: 840 × 925 × 1945 mm
• Gross weight: 195 kg
