ULT freezer ULF-08

for vaccinesfor hospitalslaboratory

Overview

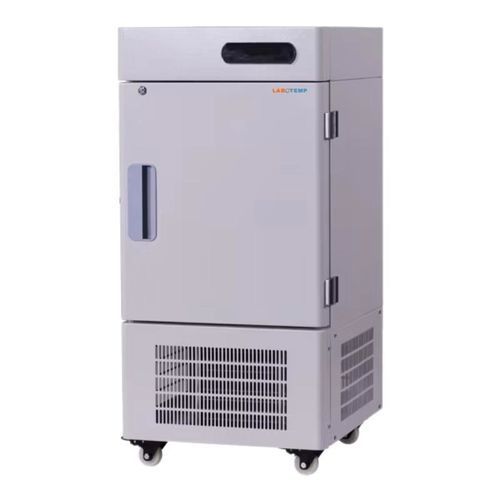

Labotemp Ultra Low Temperature Freezer ULF-08 is a compact vertical ULT unit designed for clinical laboratories, biobanks, hospitals and research facilities requiring reliable storage from −40°C to −86°C. Microprocessor control with LED display delivers 0.1°C resolution to preserve vaccines, biological samples, enzymes and pharmaceuticals while maintaining traceable monitoring.

Key advantages

• Wide ultra-low range: −40°C to −86°C for secure long-term sample preservation.
• Precise control: Microprocessor system with 0.1°C accuracy and LED display for clear monitoring.
• Efficient refrigeration: Secop compressor with HFC refrigerant and copper condenser/evaporator for uniform cooling and energy efficiency.
• Hygienic, durable construction: 304 stainless steel interior and cold-rolled steel exterior with anti-bacterial powder coating; lockable door and casters for safety and mobility.

Features

• Audio-visual alarms (temperature deviation, power loss, system faults).
• Temperature range −40°C to −86°C with 0.1°C resolution.
• Microprocessor control and LED display for precise monitoring and adjustment.
• Direct refrigeration using HFC refrigerant with copper condenser and evaporator.
• 304 stainless steel interior; cold-rolled steel exterior with anti-bacterial powder coating; lockable outer door and two inner doors.

Applications

• Storage of vaccines, clinical and biobank samples, enzymes and temperature-sensitive reagents.
• Use in hospitals, clinical laboratories and research facilities requiring ultra-low temperature preservation.
• Long-term storage of sensitive biological materials with strict temperature control.

Specifications

• Model: ULF-08
• Capacity: 108 L
• Temperature range: −40°C to −86°C
• Temperature accuracy: 0.1°C
• Control system: Microprocessor control, LED display
• Compressor: Secop
• Refrigerant: HFC mixture
• Refrigeration type: Direct refrigeration
• Condenser & evaporator: Copper
• Internal material: 304 stainless steel
• External material: Cold-rolled steel with anti-bacterial powder coating
• Alarm: Audible and visual (temperature, power, system faults)
• Power consumption: 450 W (steady); 6.1 kW·h / 24 h
• Power supply: AC110V/220V ±10%, 50/60Hz
• External size (W×D×H): 700 × 730 × 1260 mm
• Internal size (W×D×H): 460 × 460 × 510 mm
• Package size: 785 × 800 × 1430 mm
• Net weight / Gross weight: 107 kg / 133 kg
• Mobility: 4 casters
• Door: Lockable outer door with 2 inner doors
• Accessories: 1 shelf; 1 balance port φ18 mm
