ULT freezer ULF-09

for vaccineshospitalblood bank

Overview

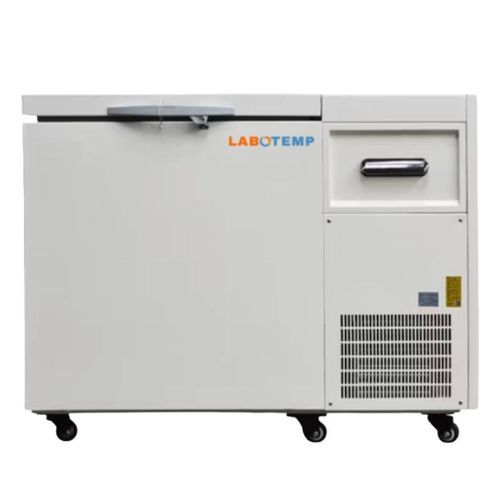

Labotemp ULF-09 is a horizontal ultra-low temperature (ULT) chest freezer engineered for secure long-term storage of vaccines, biological samples and temperature-sensitive reagents. It provides 118 L usable volume and an adjustable operating range from −60°C to −86°C with 0.1°C resolution through microprocessor control and an LED display. Designed for continuous use in clinical and research environments, it integrates copper refrigeration components, comprehensive alarms and a lockable lid.

Key benefits

• Precise temperature control (−60°C to −86°C) with 0.1°C accuracy to protect sample integrity.
• Compact horizontal chest layout for laboratories and clinical storage with limited footprint.
• Integrated safety and monitoring: microprocessor control, KELD thermostat, audible and visual alarms for temperature, power and system faults.

Features

• Eco refrigerant (HFC mixture).
• Microprocessor control with LED display for accurate setpoint and status monitoring.
• Direct refrigeration with copper condenser and evaporator for stable cooling.
• 150 mm insulation and 304 stainless steel interior for hygiene and durability.
• Lockable chest lid and six casters for secure placement and mobility.

Applications

• Long-term storage of vaccines, biological specimens, cell lines and sensitive reagents.
• Use in hospitals, biobanks, blood banks, research institutes and pharmaceutical laboratories.
• Temperature-controlled preservation for clinical trials, diagnostics and production workflows requiring −80°C class storage.

Specifications

• Model: ULF-09
• Capacity: 118 L
• Temperature range: −60°C to −86°C (adjustable)
• Temperature accuracy: 0.1°C
• Compressor: Secop
• Thermostat brand: KELD
• Control system: Microprocessor control, LED display
• Power supply: AC110V/220V ±10%, 50/60Hz
• Input power: 400 W
• Power consumption: 7.3 kWh/24h
• Type: Horizontal chest
• External dimensions: 1270 × 795 × 990 mm
• Internal dimensions: 540 × 400 × 560 mm
• Refrigeration type: Direct refrigeration
• Refrigerant: HFC mixture
• Condenser & evaporator: Copper
• Internal material: 304 stainless steel
• External material: Cold-rolled steel with antibacterial powder coating
• Door: Lockable
• Casters: 6
• Insulation thickness: 150 mm
• Balance port: 1, φ18 mm
• Package size: 1340 × 865 × 1160 mm
• Net weight: 126 kg
• Gross weight: 165 kg
