ULT freezer ULF-04

for vaccinesfor hospitalslaboratory

Product Overview

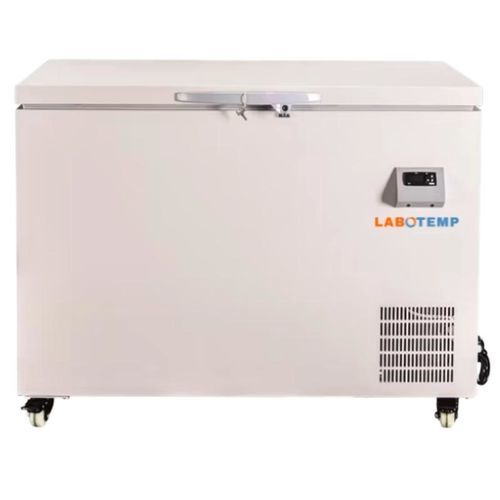

Labotemp ULF-04 −80°C ultra-low temperature (ULT) chest freezer is a compact horizontal unit engineered for laboratories, hospitals and research facilities requiring stable storage between −40°C and −80°C. Suitable for vaccines, biological samples, enzymes and reagents, the ULF-04 delivers electronic temperature control and intelligent alarm protection for reliable long-term sample preservation in clinical and research environments.

Key Highlights

• Precise temperature control: adjustable range −40°C to −80°C for consistent ultra-low storage.
• Robust materials: Stainless Steel 304 interior and liner with powder-coated steel exterior and 100 mm insulation for thermal stability and hygiene.
• Safety features: audible and visual alarms, electronic monitoring, PTC probe sensor and four castors for mobility.
• Efficient refrigeration: SECOP compressor, Germany-brand EBM condenser fan, single-compressor system and fluorine-free eco refrigerant for uniform cooling and reduced environmental impact.

Features

• Horizontal (chest) ultra-low temperature freezer.
• Temperature range: adjustable −40°C to −80°C.
• Capacity: 220 L.
• SECOP compressor and German EBM condenser fan.
• Fluorine-free environmentally friendly refrigerant.
• Electronic temperature control with data display.
• PTC probe temperature sensor.
• 100 mm rigid foamed insulation layer.
• Stainless Steel 304 interior and liner for hygiene and durability.
• Powder-coated steel exterior for corrosion resistance.
• Four castors for mobility.
• Audible and visual alarm system for fault and temperature alerts.

Applications

• Long-term storage of biological samples, vaccines, enzymes and reagents in laboratories and hospitals.
• Ultra-low temperature preservation for research and industrial applications.

Specifications (table)
Model: ULF-04
Capacity: 220L
Temperature range: −40°C to −80°C, adjustable
Compressor: SECOP
Type: Horizontal (chest)
Alarm: Audible and visual alarm
Voltage: 220V 50Hz / 110V 60Hz
Input power: 440W
Power consumption: 5.8 kW·h/24 h
Protection grade: I/B
Climate type: N
Refrigerant: Fluorine-free eco refrigerant
Refrigeration system: Single-compressor refrigeration system
Temperature control: Electronic temperature control
Temperature display: Data display
Probe: PTC
Condenser fans: Germany brand EBM
Exterior material: Powder-coated steel plate
Interior material: Stainless Steel 304
Liner: Stainless Steel 304
Foaming layer thickness: 100 mm
Balance hole: 1 (Ø 18 mm)
Castors: 4
Net weight / Gross weight: 106 / 140 kg
External dimensions: 1160 × 765 × 885 mm
Internal dimensions: 960 × 470 × 595 mm
Packaging dimensions: 1220 × 825 × 1020 mm

Technical specifications

• Model: ULF-04
• Capacity: 220 L chest capacity
• Temperature range: adjustable −40°C to −80°C
• Compressor: SECOP (single-compressor system)
• Condenser fan: Germany brand EBM
• Refrigerant: Fluorine-free, eco-friendly
• Temperature control/display: Electronic controller with data display
• Probe: PTC temperature probe
• Insulation: 100 mm rigid polyurethane foaming
• Interior & liner material: Stainless Steel 304
• Exterior: Powder-coated steel plate
• Input power: 440 W; Power consumption: 5.8 kW·h / 24 h
• Voltage options: 220V 50Hz / 110V 60Hz
• Protection grade: I/B; Climate type: N
• Mobility: 4 castors
• Dimensions (external): 1160 × 765 × 885 mm; (internal): 960 × 470 × 595 mm
• Net/Gross weight: 106 / 140 kg
