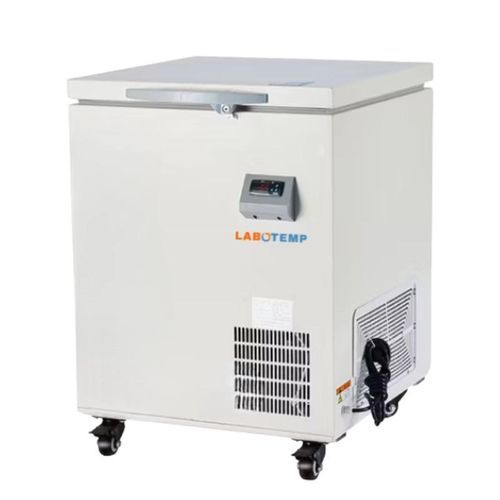

Vaccine freezer ULF-03

for hospitalslaboratoryfor sample storage

Product Overview
Labotemp ULF-03 is a compact, reliable ultra low temperature chest freezer designed for laboratories, hospitals, research institutes and industrial facilities. It provides stable −40°C to −80°C performance suitable for storing vaccines, biological samples, enzymes and reagents. The design emphasizes durability, hygiene and mobility with a stainless steel 304 interior, powder-coated exterior and four smooth casters.

Key details
High-efficiency SECOP compressor and EBM condenser fans for uniform cooling and energy efficiency. Uses fluorine-free environmental protection refrigerant. 120L capacity with 100 mm insulation layer. Electronic temperature control with digital/data display and PTC probe. Single-compressor refrigeration and electronic control ensure consistent ultra-cold performance. Audio-visual alarms and mobility casters improve safety and handling.

Features

• Stable −40°C to −80°C cooling range
• SECOP compressor and EBM condenser fans for stable, efficient cooling
• Fluorine-free, eco-friendly refrigerant
• 304 stainless steel interior and liner for hygiene and corrosion resistance
• Powder coated steel exterior for durability
• 100 mm insulation (foaming) layer for excellent temperature retention
• Electronic temperature control and data display
• PTC temperature probe
• Audio-visual alarms for safe operation
• Four castors for mobility

Applications

• Storage of biological samples, vaccines and reagents
• Use in laboratories, hospitals and research institutes
• Industrial applications requiring ultra-low temperature preservation

Specifications

• Model NO.: ULF-03
• Temperature Range: -40°C to -80°C, Adjustable
• Capacity: 120 L
• Voltage: 220V/50Hz
• Compressor: SECOP
• Type: Horizontal (chest)
• Alarm: Audible and visual alarm
• Input Power: 370 W
• Power consumption: 5.1 kW·h / 24 h
• Protect Grade: I/B
• Climate type: N
• Refrigerant: Fluorine-free environmental protection refrigerant
• Refrigeration system: Single compressor refrigeration system
• Temperature control: Electronic temperature control
• Temperature display: Data display
• Probe: PTC
• Condenser fans: EBM
• Exterior Material: Powder coated steel plate
• Interior Material: Stainless Steel 304
• Liner: Stainless Steel 304
• Thickness of foaming layer: 100 mm
• Balance hole: 1 (Diameter 18 mm)
• Castor: 4
• External dimensions: 810 × 765 × 885 mm
• Internal dimensions: 610 × 470 × 595 mm
• Package size: 880 × 835 × 1055 mm
• Net weight: 89 kg
• Gross weight: 116 kg
