ULT freezer ULF-25

for vaccineshospitallaboratory

Product overview

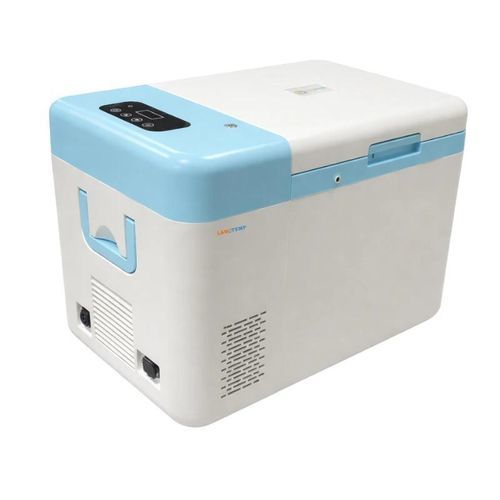

Labotemp Portable Ultra Low Temperature Freezer -86°C ULF-25 is a high-performance Stirling freezer engineered for the safe storage and transportation of temperature-sensitive biological samples, vaccines, pharmaceuticals, reagents, and research materials. Featuring a 25 L storage capacity, an adjustable temperature range from +18°C to -86°C, and ±1°C temperature stability, it delivers dependable ultra-low temperature preservation for laboratories, clinical facilities, pharmaceutical cold chains, and field research. High-performance vacuum insulated panels combined with polyurethane foam insulation minimize heat loss, while the PT100 temperature sensor ensures precise monitoring and stable storage conditions. Designed for maximum flexibility, the ULF-25 operates on both 100–240 V AC and 12/24 V DC power, making it ideal for mobile laboratories, emergency response, and cold chain transportation.

Advanced Stirling cooling technology
The ULF-25 utilizes a free-piston Stirling freezer system that cools by cyclically compressing and expanding helium gas within a sealed mechanism, eliminating the need for conventional compressor technology. With fewer moving components, Stirling cooling offers lower vibration, quieter operation, greater reliability, and reduced maintenance than traditional compressor-based freezers. The system rapidly reaches -86°C, maintains stable temperatures within ±1°C, and consumes an average of only 75 W during steady operation. The design uses environmentally friendly working gas and includes intelligent temperature monitoring and integrated high/low temperature alarms to support sustainable, long-term ultra-low temperature storage.

Key features

• Advanced Stirling freezer: compressor-free cooling for quiet, low-maintenance, and energy-efficient operation
• Portable cold chain solution: 25 L capacity with AC/DC power compatibility for laboratory, transport, and field applications
• Reliable & eco-friendly design: vacuum insulation, PT100 sensor, and intelligent alarms ensure safe and efficient performance
• Dual power AC/DC: supports 100–240 V AC and 12/24 V DC operation
• Ultra-low temperature performance: adjustable control down to -86°C with ±1°C stability
• High-efficiency thermal insulation: vacuum insulated panels plus polyurethane foam
• Intelligent temperature monitoring: PT100 Class B sensor (RTD) for precise control
• Rapid cooling performance: reaches ultra-low temperatures quickly (see specifications for performance figures)
• Comprehensive safety protection: high/low temperature alarms and intelligent monitoring
• Low noise & energy efficient: operates below 55 dB(A) with low steady-state power consumption

Applications

• Clinical & hospital laboratories: storage for biological specimens, diagnostic samples, plasma, serum, and other temperature-sensitive clinical materials
• Pharmaceutical & biotechnology: preservation of vaccines, pharmaceutical products, reagents, enzymes, and biologics for storage and cold chain transport
• Research & academic institutions: long-term preservation of DNA, RNA, proteins, cell cultures, microbial strains, and research samples
• Mobile laboratories & field research: on-site sample collection, environmental monitoring, veterinary diagnostics, and remote expeditions
• Cold chain logistics: secure transport and temporary storage during distribution, emergency response, and vaccine delivery
• Public health & emergency response: rapid deployment for outbreak investigations, disaster relief, and mobile healthcare units

Optional accessories

• Vaccine holder
• Temperature recorder with network capability

Technical specifications

• Temperature range: +18°C to –86°C
• Volume: 25 L
• Power supply: 100V AC–240V AC, 50/60 Hz; 12V DC–24V DC
• Maximum power / current: 100 W (0.5A @220V, 4.6A @24V)
• Refrigerant / working gas: Helium (He)
• Heat transport system: Gravity-driven thermosiphon
• Cooling engine: Free piston Stirling cooler
• Temperature control accuracy: Target temperature ±2°C
• Performance (25°C ambient, empty): ~3.5 hours from 25°C to –80°C
• Steady-state power consumption: 75 W
• Insulation: High-performance vacuum insulated panels + polyurethane foam
• Noise level: <55 dB
• Control sensor: RTD (PT100 Class B), precision ±0.3
• Alarm: High/low temperature alarm (setpoint ±10°C)
• Security: Lockable lid
• Defrost method: Manual
• Environmental conditions: Non-corrosive, non-flammable, non-explosive; altitude ≤2000 m
• Interior dimensions (L×W×D): 300×250×300 mm
• Exterior dimensions (L×W×D): 616×392×455 mm
• Net weight: 21 kg
• Shipping dimensions (L×W×D): 710×480×530 mm
• Shipping weight: 26 kg
