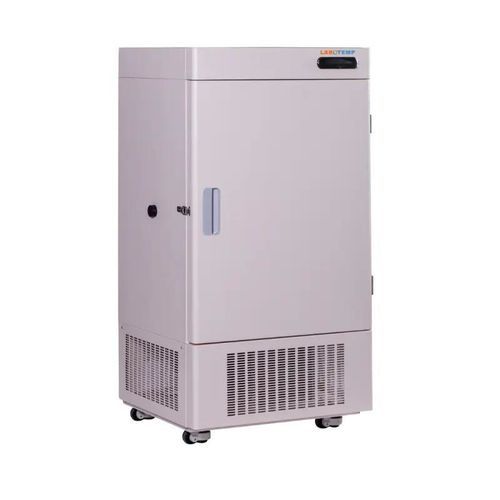

Vaccine freezer ULF-11

for hospitalslaboratoryfor biobanks

Product overview
Labotemp Ultra Low Temperature Freezer ULF-11 is an upright laboratory freezer providing stable −40°C to −86°C storage for laboratories, hospitals and biobanks. With 208 L usable volume, microprocessor control and LED display it offers 0.1°C resolution to protect vaccines, enzymes, reagents and biological samples.

Key design and components
Equipped with a Secop compressor, HFC mixture refrigerant, copper condenser and evaporator, and rigid mono-assembly polyurethane insulation within a unibody structure. Interior is 304 stainless steel; exterior is cold-rolled steel with anti-bacterial powder coating. The unit includes a lockable outer door, three inner doors/partitions, four casters and integrated audible/visual alarms for temperature, power, sensor and door faults.

Why choose ULF-11

• Wide ultra-low range: −40°C to −86°C for critical-sample protection.
• Accurate control: microprocessor regulation with 0.1°C resolution and LED readout.
• Reliable refrigeration: Secop compressor, copper heat exchangers and rigid insulation for consistent thermal performance.

Features

• Microprocessor control with LED display for clear monitoring.
• Upright configuration with 208 L capacity for medium-volume storage.
• Adjustable temperature range −40°C to −86°C with 0.1°C accuracy.
• Audible and visual alarms for temperature, power, sensor and door events.
• HFC mixture refrigerant combined with Secop compressor for efficient cooling.
• 304 stainless steel interior and anti-bacterial coated cold-rolled steel exterior.
• Copper condenser and evaporator with rigid polyurethane insulation for thermal stability.

Applications

• Storage of biological samples, vaccines, enzymes and reagents in research and clinical laboratories.
• Long-term preservation in hospitals and biobanks of sensitive biological and pharmaceutical materials.

Technical specifications

• Model: ULF-11
• Brand: Labotemp
• Capacity: 208 L
• Temperature range: −40°C to −86°C
• Temperature accuracy: 0.1°C
• Compressor: Secop
• Power supply: AC110V/220V ±10%, 50/60Hz
• Power consumption: 500 W; 7.2 kW·h/24h
• Package size: 895 × 800 × 1770 mm
• External size: 810 × 730 × 1600 mm
• Internal size: 570 × 485 × 800 mm
• Control system: Microprocessor control, LED display
• Alarm: Audible and visual
• Refrigeration type: Direct refrigeration
• Refrigerant: HFC mixture
• Condenser & Evaporator: Copper
• Structure: Unibody design; mono-assembly polyurethane insulation
• Internal material: 304 stainless steel
• External material: Cold-rolled steel with anti-bacterial powder coating
• Door: Lockable outer door; 3 inner doors
• Shelves: 2 pcs
• Casters: 4
• Balance port: 1, φ18 mm
• Net weight: 142 kg
• Gross weight: 172 kg
