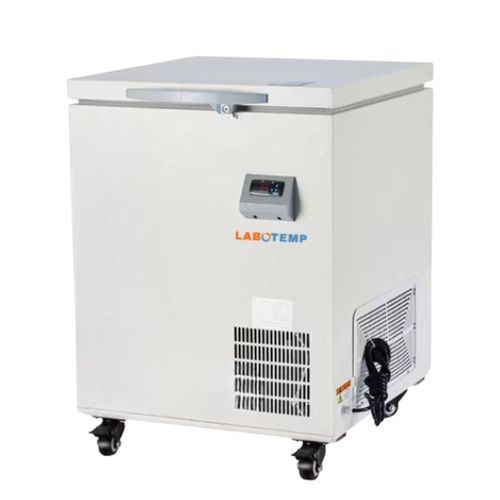

Vaccine freezer ULF-02

for hospitalslaboratoryfor clinical laboratories

Product overview
Labotemp ULF-02 is a compact ultra‑low temperature (ULT) freezer designed for secure −40°C to −80°C cold‑chain storage. With a 60 L capacity and benchtop footprint, the unit is intended for clinical settings, mobile vaccine teams, research benches and diagnostic laboratories where controlled ultra‑low storage and mobility are required.

Design and operation
The ULF-02 integrates a Secop compressor, CFC‑free mixed refrigerant, a Keld smart thermostat and a digital display to deliver consistent temperature control and energy‑efficient operation. The manual defrost system, 304 stainless steel inner chamber and folding door support hygienic handling and simplified access during routine and field use. Smooth casters enable relocation within constrained lab spaces.

Why choose Labotemp ULT Freezer ULF-02?

• Compact & portable: benchtop form factor with casters and folding door for constrained environments.
• Lab‑grade protection: Secop compressor and 304 stainless steel interior for reliable −40°C to −80°C storage.
• Compliance‑oriented features: digital display, alarm functions and protective packaging for clinical and field deployment.

Features

• 60 L compact design suitable for benchtop use
• Secop compressor with Keld smart thermostat for stable cooling
• 304 stainless steel inner chamber for hygiene and durability
• Mixed CFC‑free refrigerant
• Manual defrost and folding door for easy access
• Four casters for mobility

Applications

• Storage of vaccines, biological samples and reagents in hospitals, clinics and research laboratories
• Field and mobile vaccine storage where portable ultra‑low cooling is required

Specifications (table view)
Model NO.: ULF-02
Temperature Range: -40 ~ -80°C
Net Capacity: 60 L
Voltage: 220V 50Hz / 110V 60Hz
Compressor: Secop
Temperature Control: Smart Thermostat
Defrost Type: Manual Defrost
Certification: ISO, CCC
Input Power: 360 W
Gas: Mixed CFC‑free refrigerant
Door Type: Folding Door
Thermostat: Keld Brand
Out Size: 670 × 765 × 905 mm
Caster: 4
Transport Package: Plywood Box
Type: Chest / Deep Freezer
Power Source: Electricity
Temperature Type: Single‑temperature
Function: Cold storage & freezing
Temp. Display: Digital Display
Inner Size: 470 × 470 × 300 mm
Liner Material: 304 Stainless Steel
Specification: 1530 × 765 × 885 mm
Net Weight: 78 kg
Gross Weight: 100 kg
Packing Size: 730 × 825 × 1040 mm

Technical specifications

• Model NO.: ULF-02
• Temperature Range: -40 ~ -80°C
• Net Capacity: 60 L
• Voltage: 220V 50Hz / 110V 60Hz
• Compressor: Secop
• Temperature Control: Smart Thermostat
• Thermostat Brand: Keld
• Defrost Type: Manual Defrost
• Liner Material: 304 Stainless Steel
• Input Power: 360 W
• Refrigerant: Mixed CFC‑free refrigerant
• Door Type: Folding Door
• Type: Chest / Deep Freezer
• Temperature Type: Single‑temperature
• Function: Cold storage & freezing
• Temp. Display: Digital Display
• Inner Size: 470 × 470 × 300 mm
• Outer Size: 670 × 765 × 905 mm
• Specification (additional): 1530 × 765 × 885 mm
• Caster: 4 (mobility)
• Transport Package: Plywood Box
• Net Weight: 78 kg
• Gross Weight: 100 kg
• Packing Size: 730 × 825 × 1040 mm
• Certifications: ISO, CCC
