Heating water bath Hydro H 4

microprocessor-controlledbenchtopstainless steel

Product description

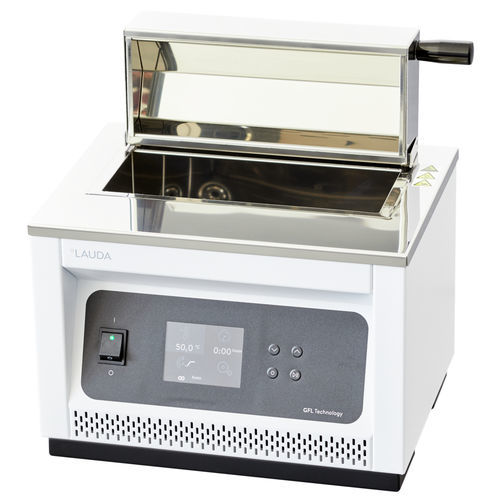

LAUDA Hydro H 4 is a stainless-steel water bath designed for laboratory and industrial applications. It provides a usable bath volume from 1.9 to 3.5 L, a working temperature range of 25–100 °C and temperature stability of ±0.1 K. The unit features a TFT colour display, digital setpoint adjustment, a drain valve and comes with lid and perforated floor as standard for safe and precise temperature control.

Features

• Simple-to-operate water bath with membrane keypad and clear TFT display
• Timer with hours and minutes settings and three application-specific modes
• Adjustable trigger points for over- and under-temperature alarms (up to ±10 K) with optical and acoustic signals
• Sensor break/short-circuit detection and electronic monitoring of the temperature controller
• Stainless-steel bath interior, cover, sieve plate and heating element; heat-insulating double-walled lid
• Design prevents condensate dripping back into vessels; bath vessel with drain valve
• Digital setpoint adjustment with 0.1 °C resolution; temperature display switchable between °C and °F

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: ±0.1 K

Technical data (according to DIN 12876)

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: ±0.1 K
• Heater power (max): 0.5 kW
• Bath volume (min / max): 1.9 L / 3.5 L
• Dimensions (WxDxH): 340 x 290 x 275 mm
• Weight: 7 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
