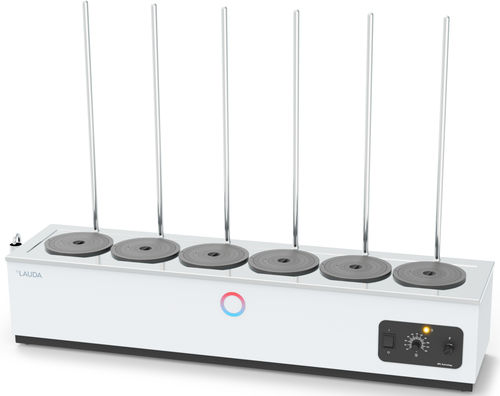

Heating water bath Hydro H 9 V

benchtopstainless steel

Product overview
LAUDA Hydro vaporization baths operate in a temperature range from 25 to 100 °C. The opening diameter of the water bath can be variably changed in approx. 20 mm steps by means of the multi-part ring set. The stainless-steel housing allows evaporation work with chemically aggressive media. Support rods (600 mm length, Ø 12 mm) are included as standard.

Key features

• Vaporization water bath for gentle steaming work
• Water deficiency protection
• All hole covers consist of a multi-part ring set and are removable
• Temperature adjustment via rotary knob with temperature scale
• Adjustable water level regulator, sieve bottom and ring set as standard
• Multi-piece ring set made of heat-resistant plastic
• 1-point temperature controller
• Bath interior, cover, sieve plate and heating element made of stainless steel
• Stainless-steel support rods (length 600 mm, Ø 12 mm) included

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: 3 ± K

Technical specifications

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: 3 ± K
• Heater power max.: 1.5 kW
• Max. power consumption: 1.5 kW
• Current consumption: 16 A
• Bath diameter (Ø): 131 mm
• Number of bath openings: 6
• Dimensions (WxDxH): 1010 x 270 x 192 mm
• Weight: 19 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
