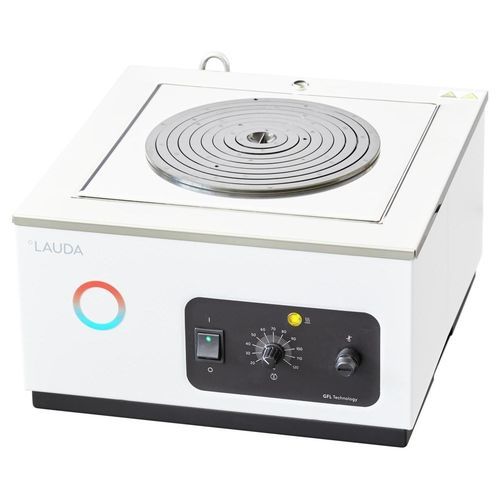

Heating water bath Hydro H 5 V

thermostaticbenchtopstainless steel

Product description
LAUDA Hydro vaporization baths operate in a temperature range from 25 to 100 °C. The opening diameter of the bath can be adjusted in approx. 20 mm steps using the multi-part ring set. Certain models (e.g. H 11 V, H 19 V) are designed for protected use in fume cupboards. The housings and key wet parts are made of stainless steel to permit evaporation with chemically aggressive media.

Features

• Vaporization water bath for gentle vaporization work
• Water deficiency protection
• Removable cover frame and multi-part ring set
• Temperature adjustment via rotary knob with scale
• Adjustable water level regulator, sieve plate and ring set supplied as standard
• Multi-piece ring set made of heat-resistant plastic
• 1-point temperature controller
• Bath interior, cover, sieve plate and heating element made of stainless steel
• Internal hole in the cover frame to accommodate stand rods

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: 3 ± K

Accessories (examples)

• Support rod (accessory A000039)
• Multi-piece ring set and sieve plate (standard delivered parts)

Technical specifications

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: 3 ± K
• Heater power max.: 1 kW
• Max. power consumption: 1 kW
• Current consumption: 16 A
• Size of bath (Ø): 192 mm
• Number of bath openings: 1
• Dimensions (WxDxH): 342 x 400 x 180 mm
• Weight: 9 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
