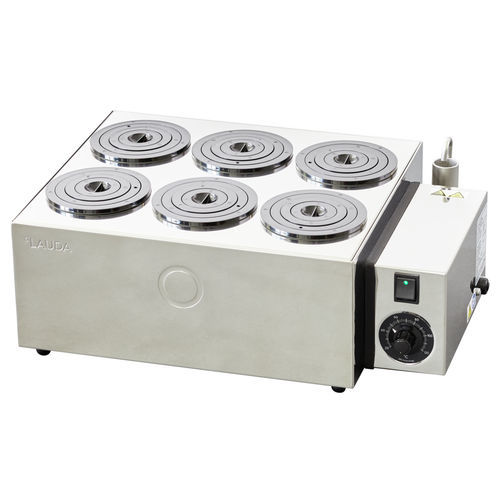

Heating water bath Hydro H 11 V

thermostaticbenchtopstainless steel

Product description
LAUDA Hydro vaporization baths operate in a temperature range from 25 to 100 °C. The opening diameter of the water bath can be varied in approx. 20 mm steps using the multi-part ring set. Models H 11 V and H 19 V are designed for protected use in fume cupboards and have stainless steel housings for evaporation work with chemically aggressive media.

Features

• Vaporization water bath for gentle steaming and evaporation work
• Water deficiency protection
• All hole covers consist of a removable multi-part ring set
• Temperature adjustment via rotary knob with scale
• Adjustable water level regulator, sieve bottom and ring set included as standard
• Multi-piece ring set made of heat-resistant plastic
• 1-point temperature controller
• Bath interior, cover, sieve plate and heating element made of stainless steel

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: 3 ± K

Technical data (according to DIN 12876)

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: 3 ± K
• Heater power max.: 1.5 kW
• Max. power consumption: 1.5 kW
• Current consumption: 16 A
• Size of bath (Ø): 91 mm
• Number of bath openings: 6
• Dimensions (W x D x H): 450 x 300 x 155 mm
• Weight: 6 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Specifications

• Model: Hydro H 11 V
• Working temperature: 25–100 °C
• Temperature stability: 3 ± K
• Heater power: 1.5 kW
• Bath opening diameter adjustable in ~20 mm steps via multi-part ring set
• Material: stainless steel bath interior, cover, sieve plate and heating element
• Water deficiency protection
• Adjustable water level regulator and sieve bottom included
• Number of bath openings: 6
• Bath diameter: 91 mm
• Dimensions: 450 x 300 x 155 mm
• Weight: 6 kg
• Power: 230 V, 50/60 Hz; power cord with angled plug (CEE7/7)
